Application: |
Power Construction |
Name: |
Pole Climber |
Rated Load: |
1.65KN |
Open Range: |
300 Mm Max |
Pole Length: |
8 M |
Material: |
Steel |

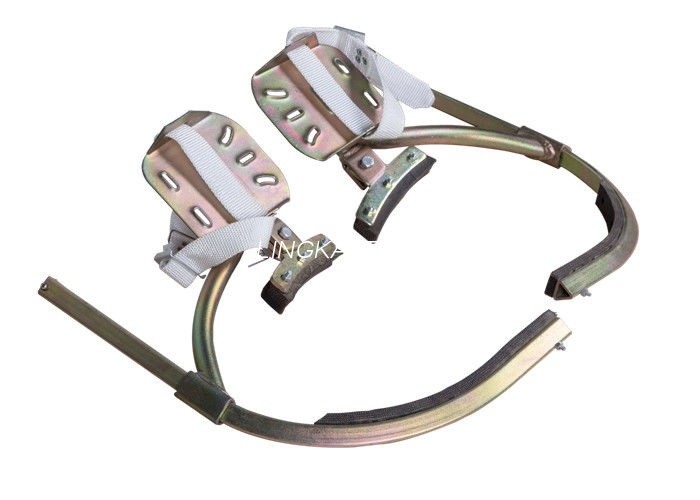

Installation Safety Tool JKT-300 Concrete Pole Climber For 8m Concrete Pole
Features:Installation Safety Tool JKT-300 Concrete Pole Climber For 8m Concrete Pole
1. Special heat treatment
2 .Weight:3.0-3.5kg
3. Easy operating
4. High quality and best price
Application:Installation Safety Tool JKT-300 Concrete Pole Climber For 8m Concrete Pole
It is used to climb the concrete pole of power line, mail and telephone line.
Production assurance description
1. The following conditions are not in the scope of quality assurance:Deformation caused by stressing
application not according to the stated testing load. Corrosion caused by being affected with damp.Lack of nameplate, date of manufacture or test lot No.
2. storage,The climbers should be stored in the well ventilated place and you should keep it from corrosion.
3. Our climbers are produced according to local standard design and organizations , we will responsible for all quality problem for half year if the products are under normal use.
Data Details:Installation Safety Tool JKT-300 Concrete Pole Climber For 8m Concrete Pole
| Model | JK-T-300 | JK-T-350 | JK-T-400 | JK-T-450 |
| The biggest opening distance(mm) | 300 | 350 | 400 | 450 |
| Weight (kg) | 3.0-3.5 | 3.0-3.5 | 3.0-3.5 | 3.0-3.5 |
| Outer diameter of cement rod(mm) | Φ190-Φ300 | Φ250-Φ350 | Φ250-Φ400 | Φ250-Φ400 |
| Rated load(KN) | 1.00 | 1.00 | 1.00 | 1.00 |
| Testing load(KN) | 1.65 | 1.65 | 1.65 | 1.65 |
| Overload(KN) | 2.25 | 2.25 | 2.25 | 2.25 |
| Testing time(min) | 5 | 5 | 5 | 5 |
| Remarks | For 8m cement pole |
For 10-12m cement pole |
For 15m cement pole |
For 18m cement pole |
Application Site:Installation Safety Tool JKT-300 Concrete Pole Climber For 8m Concrete Pole
Please click below picture to find the video about application method
