Materail: |
MC Nylon, Cast-steel Sheave |
Item: |

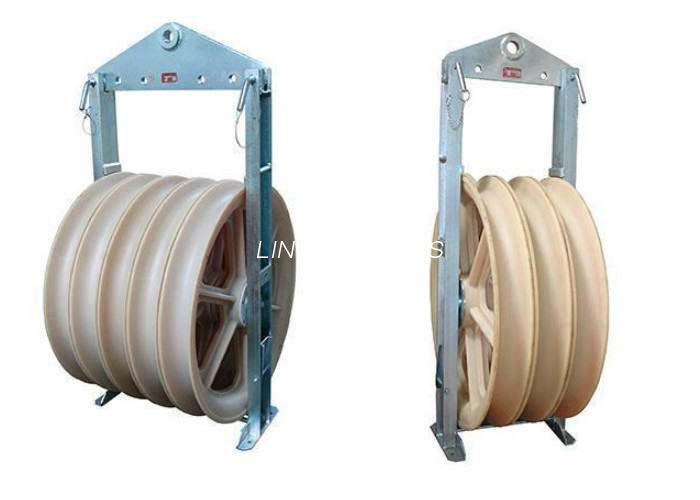

Overhead Line Stringing Pulley |
Weight: |
100kg |
Name: |
Stringing Block |
Conductor: |
Rubber Lined Aluminum Sheave |
Model: |
SHD660 |
Quick details:
1. Transmission Line Stringing Accessories
2. Conductor/Cable/OPGW Bundled Conductor Pulley
3. Diameter: 660mm, Width: 110mm
4. One, Three, Five wheel
5. With Rubber Covered or Without
6.Middle:cast steel sheave.
Application
In transmission power line and communications cable installation work, stringing job is a must , and various of tools will be applied for this job, in which conductor stringing block is one of them. It is a very good tool to protect cables and conductors.
Conductor Pulley Block Specifications
| Item Number | Model | Number of Sheave |
Rated Load (kN) |
Weight (kg) | Features |
| 10121 | SHD660 | 1 | 20 | 30 | Rubber coated aluminum sheave |
| 10122 | SHS660 | 3 | 40 | 106 | Middle: cast steel sheave with the width of 90mm Conductor: rubber coated aluminum sheave |
| 10123 | SHW660 | 5 | 60 | 150 | |
| 10124 | SHDN660 | 1 | 20 | 24 | MC nylon sheave |
| 10125 | SHSLN660 | 3 | 40 | 92 | Middle: MC nylon sheave Conductor: rubber coated aluminum sheave |
| 10126 | SHWLN660 | 5 | 60 | 120 | |
| 10127 | SHSQN660 | 3 | 40 | 76 | MC nylon sheave |
| 10128 | SHWQN660 | 5 | 60 | 110 | |
| 10129 | SHQZ660 | 7 | 80 | 268 | Middle: cast steel sheave Conductor: rubber coated aluminum sheave |
| 10130 | SHQ660A | 7 | 75 | 190 | Middle: cast steel sheave Conductor: MC nylon sheave |
