Model: |
JJM3B |
SlowI: |
3 Ton Force |
Fast II: |
1.8t |
Power: |
2.94KW |
Weight: |
108kg |
Engine: |
170F Deisel |

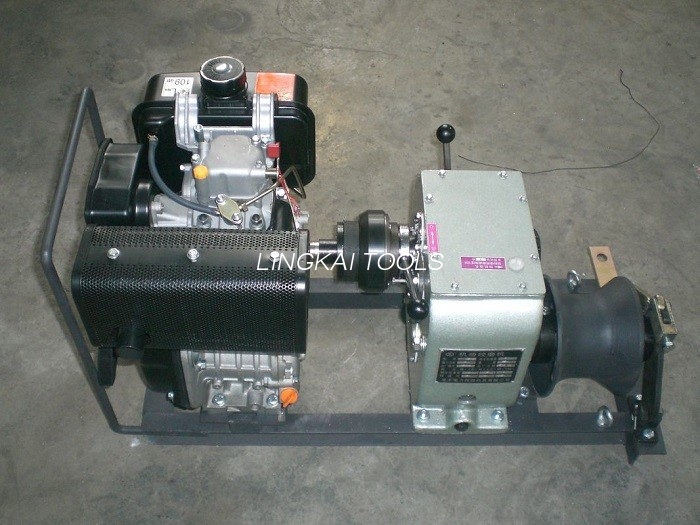

3 Ton Diesel Engine Powered Cable Winch With Single Capstan in Line Construction
Application
3 Ton Diesel Engine Powered Cable Winch With Single Capstan is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Technical Data
| Model Type | Engine Power | Gear | Pulling Speed(m/min) | Line Pull(Ton) |
|
JJM3C |
Diesel Engine | Slow | 5 | 3 |
| Quick | 9 | 1.8 | ||
| Reverse | 4.5 |
