Name: |
Mesh Socket Joints |
Application: |
OPGW, Earth Wire And ACSR |
Size And Length: |
Can Be Customized |
Rated Load: |
Can Be Customized |

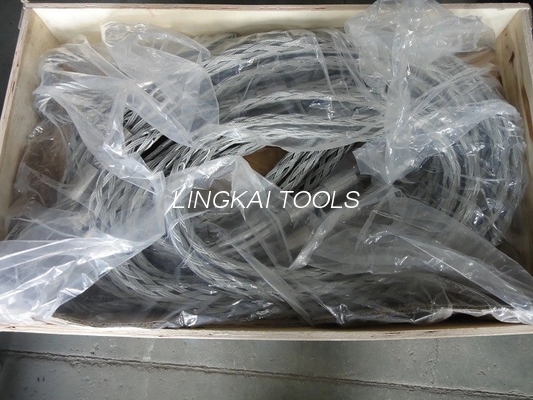

Mesh socket joints are used for pulling overhead conductor, OPGW and earth wires, or underground power cable or telecom optic fiber cable. They are braided from high strength galvanized steel wire. These socks are designed and manufactured according to different cables.
MESH SOCKET JOINTS FOR ACSR CONDUCTOR
| Single head Item No. | Double head Item No. | Model | Conductor Size (mm²) | Load (KN) | |
| With protector | w/ protector | Rated | Break | ||
| 17161 | 17181 | SLW-1.5 | ACSR70-120 | 15 | 45 |
| 17162 | 17182 | SLW(S)-2 | ACSR120-150 | 20 | 60 |
| 17163 | 17183 | SLW(S)-2.5 | ACSR185-240 | 25 | 75 |
| 17164 | 17184 | SLW(S)-3 | ACSR300-400 | 30 | 90 |
| 17165 | 17185 | SLW(S)-4 | ACSR500-600 | 40 | 120 |
| 17166 | 17186 | SLW(S)-5 | ACSR720 | 50 | 150 |
| 17167 | 17187 | SLW(S)-7 | ACSR900 | 70 | 210 |
| 17168 | 17188 | SLS(S)-8 | ACSR1000-1120 | 80 | 240 |
Application: It is used to grip the ACSR conductors in line stringing operation,
the product is specially braided from high strength galvanized steel wire.
It could pass through the stringing blocks and tension wheel.
The Mesh Socket joints are made of high strength galvanized steel wire,
braided in very soft ways and pressed with protection aluminum sleeve and copper sleeve.
The sleeve could protect the conductor, and prevent the head of conductor to damage the Mesh Socket Joints.
MESH SOCKET JOINTS FOR OPGW AND EARTH WIRE
| Single head Item No. | Double head Item No. | Model | Cable Diameter (mm) | Load (KN) | |
| With protector | w/ protector | Rated | Break | ||
| 17141 | 17141S | SLE(S)-1 | Φ 8-12 | 10 | 30 |
| 17142 | 17142S | SLE(S)-1.5 | Φ 11-15 | 15 | 45 |
| 17143 | 17143S | SLE(S)-2 | Φ 15-18 | 20 | 60 |
| 17144 | 17144S | SLE(S)-2.5 | Φ 18-22 | 25 | 75 |
Application: It is used to grip OPGW or GSW in line stringing operation,
the product is specially braided from high strength galvanized steel wire.
It could pass through the stringing blocks and tension wheel.
The Mesh Socket joints are made of high strength galvanized steel wire,
braided in very soft ways and pressed with protection aluminum sleeve and copper sleeve. The sleeve could protect the conductor, and prevent the head of OPGW to damage the Mesh Socket Joints.
All the mesh socket joints are inspected and tested strictly before ex-works.
