Model: |
SYK-8A |
Punchingforce: |
10T |
Punching Range: |
16-51mm |
Packing: |
Plastic Box |
Name: |
Hydarulic Opner |
Max Of Plate: |
3.5mm Mild Steel |

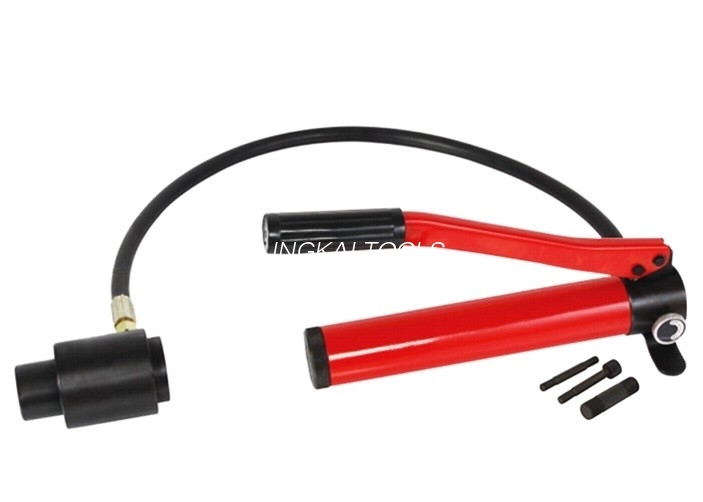

Model SYK-8 Hydraulic Punch Driver For Punching Mild Steel Max 3.5 mm Thickness Plate
SYK-8 Model Hydraulic Punch Driver 100KN Stroke 25mm for Mild Steel
Hydraulic opener hydraulic perforator:
Uses for the panel of the switch box and so on,the surfaceof the paint will not be damaged after the perforation.
Explain:the mold size can be customized according to the requirements of the user.
|
Item number |
06241A | 06241 | 06241B |
|
Mode |
SYK-8A |
SYK-8B | SYK-15 |
|
Punching range |
Φ16mm- Φ51mm | Φ22mm- Φ60mm | Φ63mm- Φ114mm |
|
Max thickness of plate |
3.5mm mild steel |
3.5mm mild steel | 3.5mm mild steel |
|
punching force |
100KN | 100KN | 150KN |
|
Stroke |
25mm | 25mm | 25mm |
|
Weight |
approx.N.W5.6KG G.W9.25KG |
approx.N.W5.6KG G.W9.5KG |
approx.N.W16KG G.W20KG |
|
Package |
plastic box | plastic box | steel case |
|
Round type dies |
Φ16mm,Φ20mm, Φ26.2mm,Φ35.2mm, Φ39mm,Φ51mm |
Φ22mm,Φ27.5mm,Φ34mm, Φ43mm, Φ49mm,Φ60mm |
Φ63mm, Φ76mm, Φ90mm,Φ101mm, Φ114mm |
