Here is the information on the Cradle Block Fiber Optic Cable Replacer:

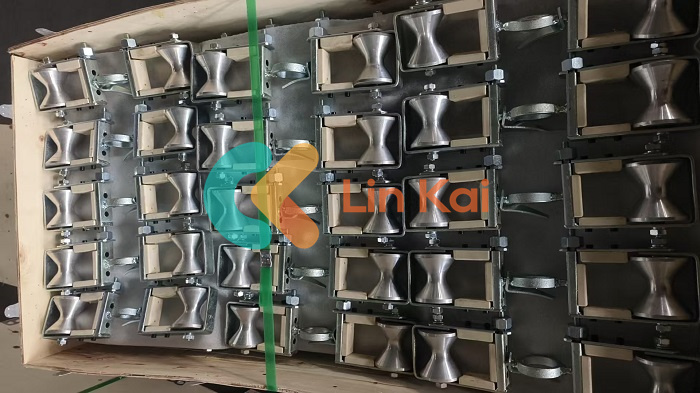

The Cradle Block Fiber Optic Cable Replacer is a specialized device designed for replacing an existing ground wire (G.W.) with an Optical Ground Wire (OPGW).
It is composed of two galvanized steel half frames linked by a ring with a swivel plate.
Each frame is fitted with:One grooved nylon roller with two ball bearingsThree nylon plates to protect the OPGWOne side of each frame can be easily opened with a knurled nutThe frame is covered by nylon liners to prevent the OPGW from making contact with the steel components. This helps reduce friction and damage to the fiber optic cable during the replacement process.
The device is suitable for use with all types of rope or OPGW.
It has an adjustable locking system that can accommodate cables of different diameters. The nylon roller is mounted on a bearing wheel to provide smooth operation.
The Cradle Block Fiber Optic Cable Replacer has a working load of 450 lbf (2 kN) and a breaking load of 2,248 lbf (10 kN). It weighs between 2.2 - 2.4 kg (4.4 - 5.3 lbs).
This equipment is commonly used in transmission line construction and maintenance work to facilitate the replacement of ground wires with fiber optic cables. It is designed to provide a safe and efficient method for this task.
