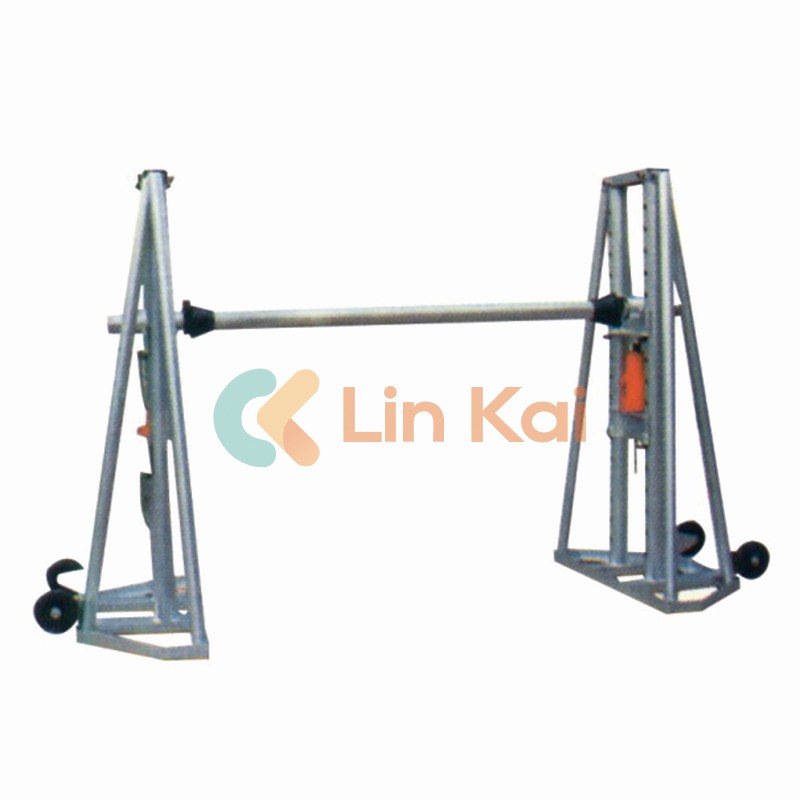

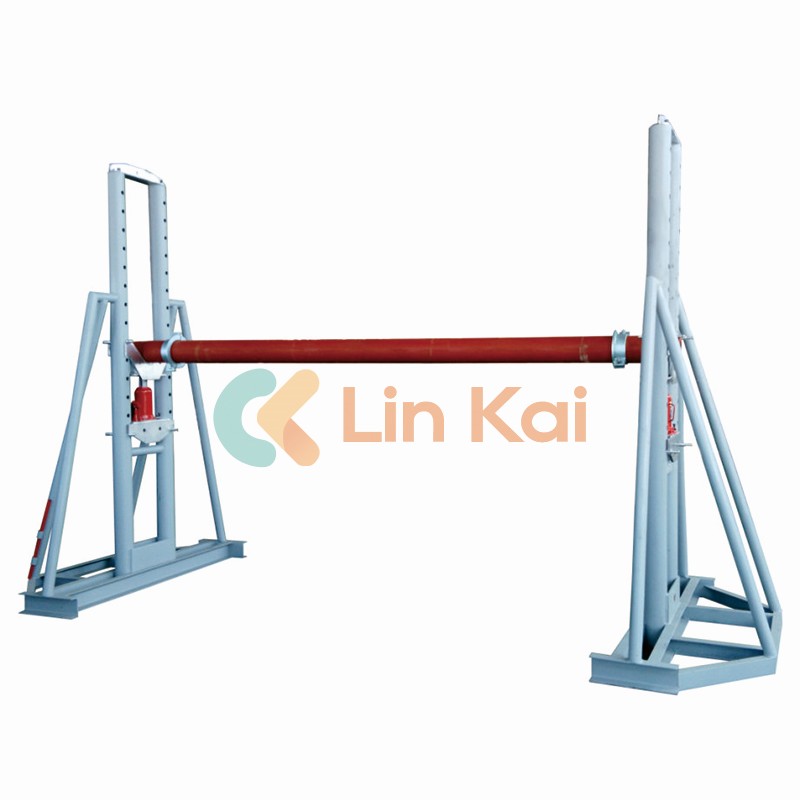

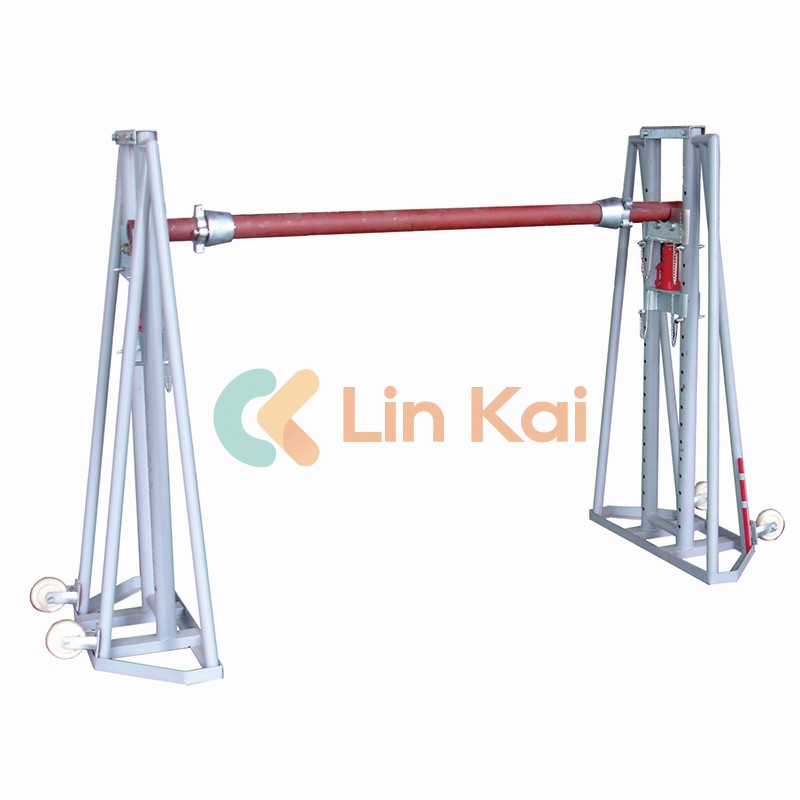

Hydraulic Cable Reel Stands Manufactured by Ningbo Lingkai Heavy Duty for cable installation it is used to support the large cable reel in laying cables in city installation of underground power cable site. This customized cable reel stands are easy to move, due to the trundles in the bottom.
This heavy duty equipment is equipped with hydraulic jack for supporting big cable drums, and along with the brake system, using the foot brake. Easy-maintainable cable drum stands are composed of three parts: two stands with one axle. The base are installed with small wheels, it is help workers easy for assembling and transportation in cable laying project.
We designed and manufactured the max 20T cable reel stands capacity in this model.
Apply to carrying cable reel, the lift height can be adjusted.
|
Item No. |
Model |
Specification of Reel |
Shaft Dia. (mm) |
Single piece weight (kg) |
||
|
Width (mm) |
Diameter (mm) |
Weight (t) |
||||
|
21341 |
SI12 |
≤2500 |
Φ2700-3200 |
≤12 |
Φ125-200 |
153 |
|
21342 |
DL120 |
≤2500 |
Φ1600-3200 |
≤12 |
Φ125-200 |
153 |
|
21343 |
DL200 |
≤2500 |
Φ2000-4000 |
≤20 |
Φ160-200 |
230 |
|
Item No. |
Model |
Specification of Reel |
Shaft Dia. (mm) |
Single piece weight (kg) |
||
|
Width (mm) |
Diameter (mm) |
Weight (t) |
||||
|
21346 |
SI-5 |
≤1600 |
Φ1250-2400 |
≤5 |
Φ76-103 |
90 |
|
21348 |
SI-10A |
≤1900 |
Φ1250-3400 |
≤10 |
Φ120-135 |
120 |
These hydraulic jacks cable drum stands right now has the 15 ton, 20 ton, 30 ton. just freely ask us to customized.
