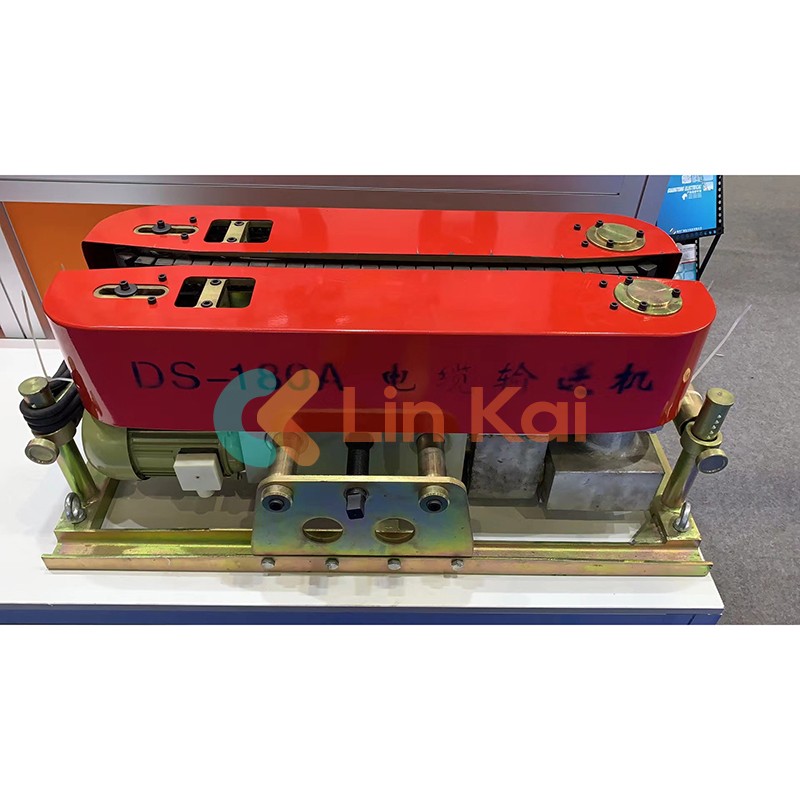

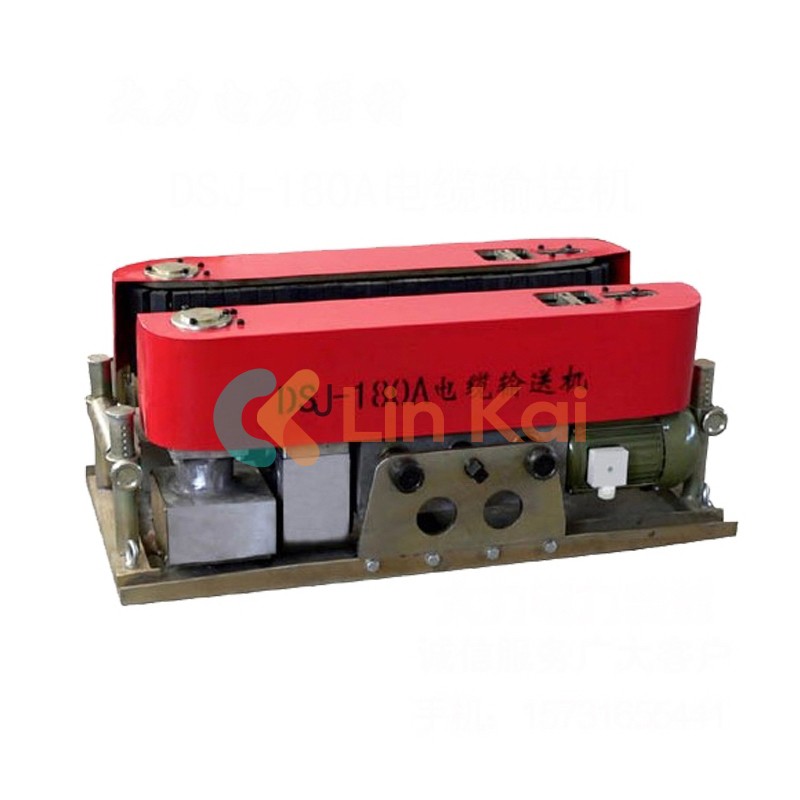

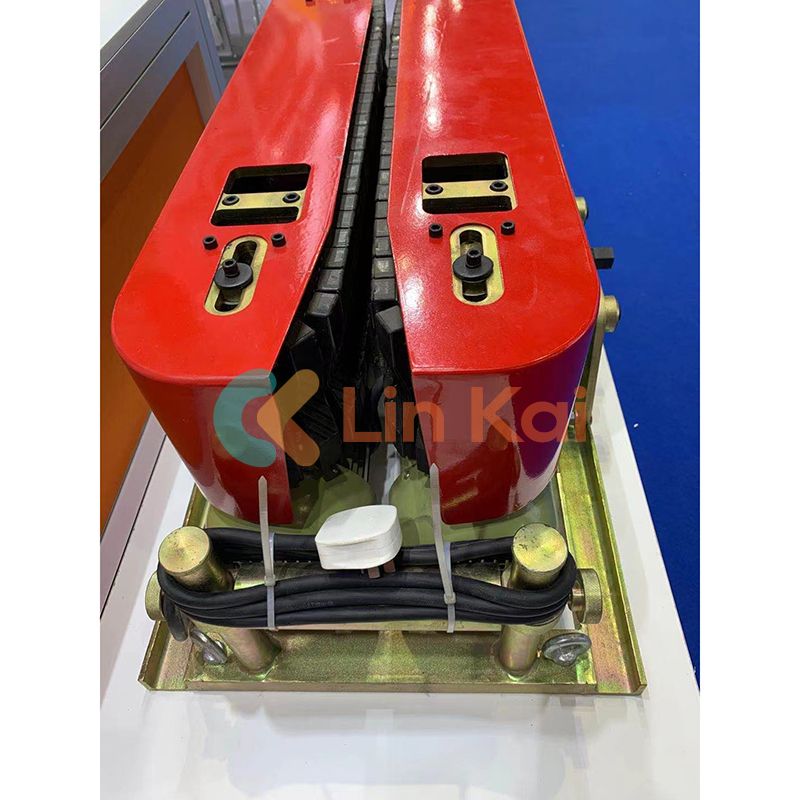

Ningbo Lingkai Manufacture’s Conveyer Cable Pulling Machine in stock, electrical cable tools DCS series. Our Conveyer Cable Pulling Machine’s electric motor can drive units for installation of power or telecom cables. The flank caterpillars drive the cables forwards, which eliminates damage of insulation. The caterpillars of products are at the central horizontal position.
Wholesale Conveyer Cable Pulling Machine applied voltage is 380V AC, the electric driven by two axles, the driven is even and low noise. The caterpillar is made in high strength neoprene, it cap protect the insulation cable well and can be used for long time.

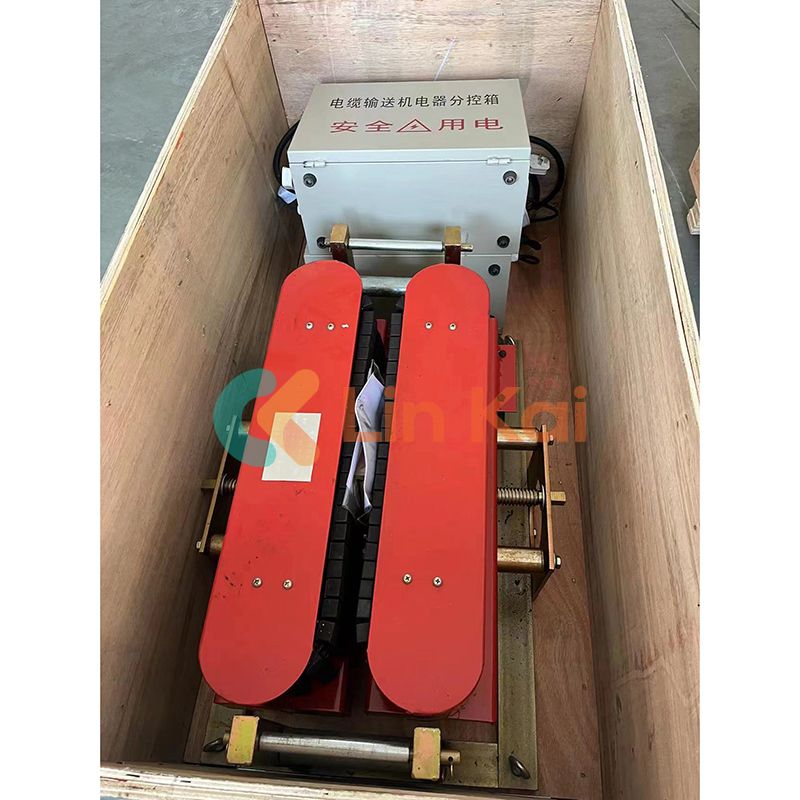

The cable pushers are connected together for pushing cable forward in the tunnel. This method can install the big power cable quickly. Each set of Cable Pusher include one subsidiary control box. If customer orders more than 6 set of cable pusher, we will provide one Main Control Box free of charge.
|
Item number |
Model |
Motor Power （KW） |
Clamping force (KN) |
Pull Force （KN） |
Conveying speed （M/MIN） |
Outline size （MM） |
Diameter of cable （MM） |
Supply Voltage （V） |
Weight （KG） |
|
21103 |
DCS-5 |
1.1*2 |
≤2.7 |
7 |
9 |
950*500*400 |
30-180 |
380 |
150 |
|
21105 |
DCS-8B |
1.1*2 |
≤2.7 |
9 |
6 |
1000*530*400 |
30-200 |
380 |
195 |
