Ningbo Lingkai Manufacture’s Cable Protection Roller has the cable protection rollers and cable triple turning roller; they are all widely application in the underground cable installation site. These are all made of highly galvanized steel, and roller self are the nylon.
Cable Protection Roller, is used for guiding cable in duct whole during cable pulling project, it is the cable entrance protection rollers, apply to cable extension. The roller can be placed in tube entrance at arbitrary angle and lockable zinc-coated steel structure with single nylon sheave.

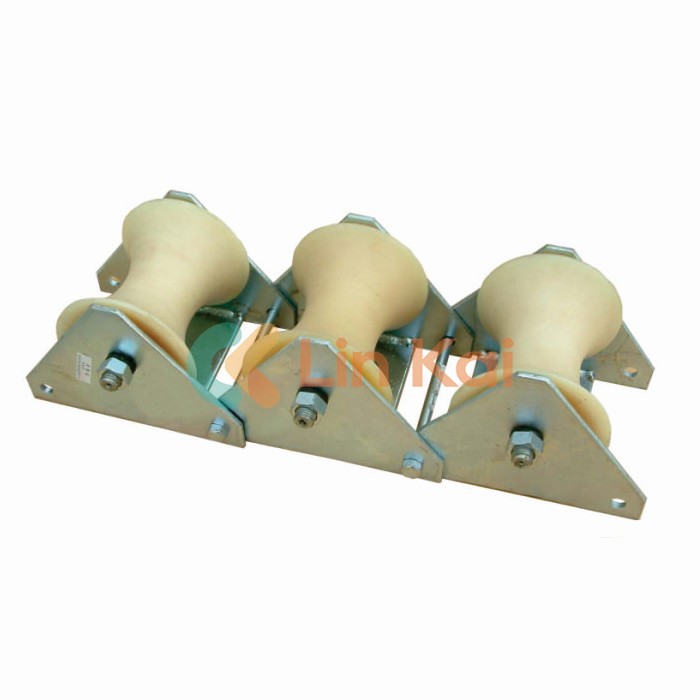

Cable Turning Roller, corner cable roller (triple), is used to apply large diameter cable pass through, they can built up arbitrary turning angle on requirement, and sheaves can be nylon and aluminum.

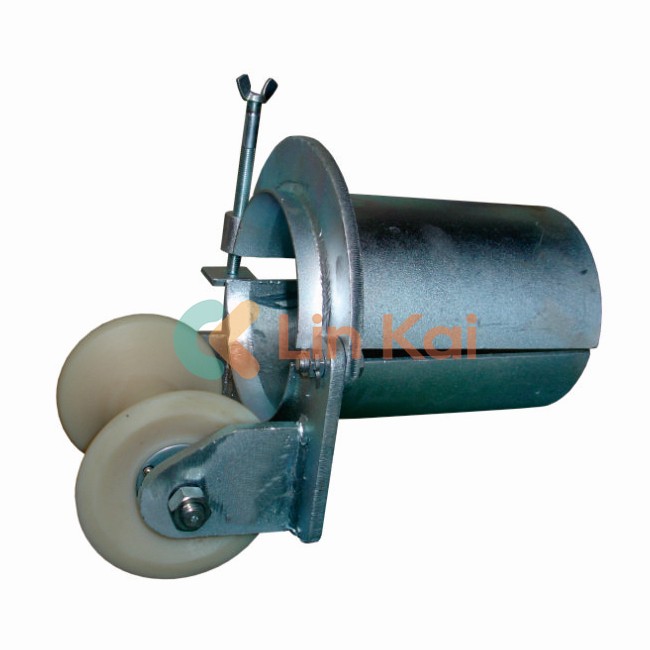

B seriescable protection rollers, it is used for guiding and protection of cable in installation project. Split tube with roller for cable guidance and protection. With Nylon sheave, galvanized steel, the roller could be placed at the duct end at any angle.
|
Item No. |
Model |
Duct Diameter (mm) |
Weight (kg) |
|
21241 |
SH80B |
80 |
4.3 |
|
21242 |
SH90B |
90 |
4.9 |
|
21243 |
SH100B |
100 |
5.2 |
|
21244 |
SH130B |
130 |
6.3 |
|
21245 |
SH150B |
150 |
7.6 |
|
21245A |
SH180B |
180 |
10 |
|
21246 |
SH200B |
200 |
12 |
WholesaleC seriescable protection rollers, it is used for guiding cable in duct whole during cable pulling project. With triple nylon rollers on galvanized steel frame. Bend radius 450mm
|
Ref. No. |
Model |
Duct Diameter (mm) |
Weight (kg) |
|
21251 |
SH80C |
80 |
17 |
|
21252 |
SH90C |
90 |
18 |
|
21253 |
SH100C |
100 |
20 |
|
21254 |
SH130C |
130 |
20.5 |
|
21255 |
SH150C |
150 |
21 |
|
21255A |
SH180C |
180 |
22 |
|
21256 |
SH200C |
200 |
23 |

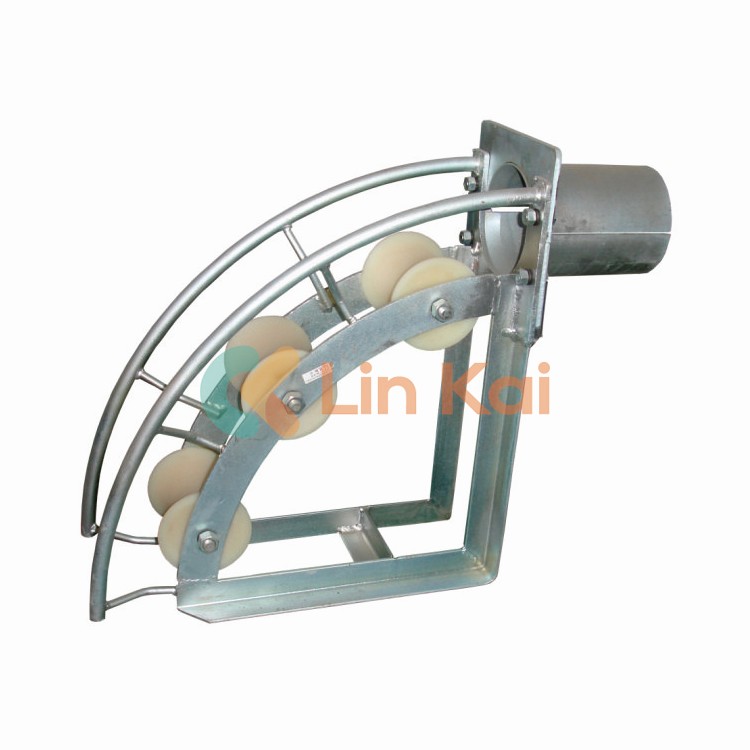

BulkC1 seriescable protection rollers, is used for guiding cable in duct whole during cable pulling project. Structure: With four nylon rollers fixed on galvanized steel frame. Bend radius 1000mm. With Nylon sheave, galvanized steel, the roller could be placed at the duct end at any angle.
|
Ref. No. |
Model |
Duct Diameter (mm) |
Weight (kg) |
|
21261 |
SH80C1 |
80 |
24 |
|
21262 |
SH90C1 |
90 |
25 |
|
21263 |
SH100C1 |
100 |
26.5 |
|
21264 |
SH130C1 |
130 |
27.5 |
|
21265 |
SH150C1 |
150 |
28.5 |
|
21266 |
SH200C1 |
200 |
30.5 |
D seriescable protection rollers in stock
|
Ref. No. |
Model |
Duct Diameter (mm) |
Weight (kg) |
|
21271 |
SH80D |
80 |
4.3 |
|
21272 |
SH90D |
90 |
4.5 |
|
21273 |
SH100D |
100 |
5.0 |
|
21274 |
SH130D |
130 |
6.9 |
|
21275 |
SH150D |
150 |
9.0 |
|
21276 |
SH200D |
200 |
12.8 |

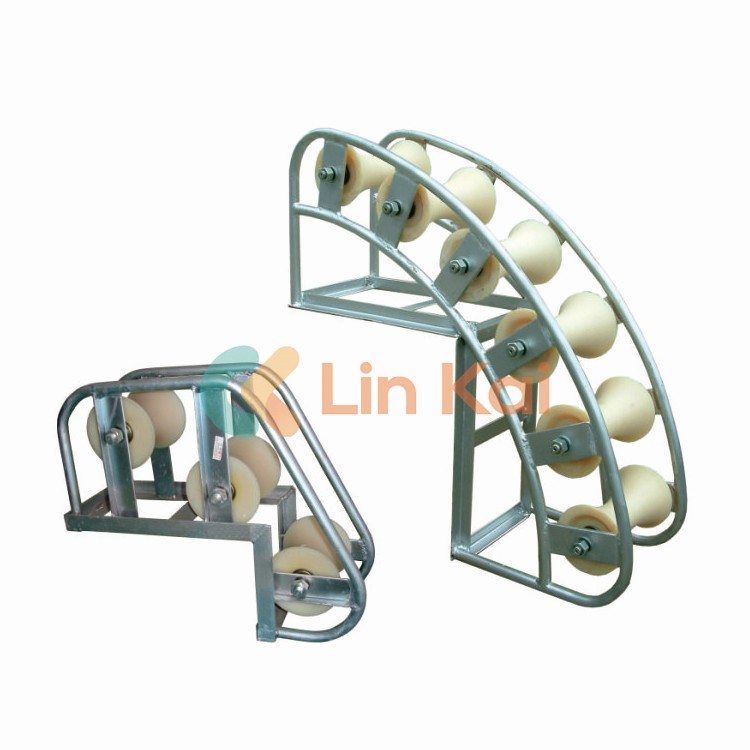

Manhole cable protection rollers,it is used for guiding and protection of cable into Manhole.21281-3 with Single roller fixed on galvanized steel plate.21285-7 With multi nylon rollers fixed on galvanized steel frame. Bend radius 700mm.
|
Item No. |
Model |
Max. Dia. Of cable |
Weight (kg) |
Sheave Material |
|
21281 |
SHH1 |
Φ80 mm |
6.2 |
Aluminum |
|
21282 |
SHH1N |
Φ80 mm |
6.7 |
Nylon |
|
21283 |
SHH1G |
Φ80 mm |
10.8 |
Steel |
|
21285 |
SH450J |
Φ100 mm |
7.7 |
Nylon |
|
21286 |
SH700J3 |
Φ160 mm |
14 |
Nylon |
|
21287 |
SH700J6 |
Φ160 mm |
23 |
Nylon |
