Ningbo Lingkai Manufacture’s Cable Ground Roller, also known as a cable laying roller, is a type of equipment used in the installation and laying of cables. It has a straight-line cable roller and a triple-sheave corner ground roller. The wholesale cable ground rollers in stock at Ningbo Lingkai manufacture are used for the installation of different underground power cables up to a maximum diameter of 200 mm.
Cable ground roller sheaves are made of aluminum or MC nylon; rollers are amounted on the bearings. Cable ground rollers are used to ensure that cables are laid smoothly and without damage to the ground, even if the terrain is rocky or uneven.
Underground Cable Ground Roller for power cable pulling and installation
Cable Ground Rollers are used for the installation and pulling of underground power cables in trenches or tunnels. The sheaves are made in aluminum or MC nylon, and the Straight Line Cable roller is for laying underground cable
|
Item No. |
Model |
Working load (KN) |
Diameter of Cable(mm) |
Construction of Cable Roller |
Weight (kg) |
|
21171 |
SHL1 |
10 |
Φ150 |
Casting Aluminum Frame Aluminum Roller |
5.4 |
|
21172 |
SHL1N |
10 |
Φ150 |
Casting Aluminum Frame Nylon Roller |
3.6 |
|
21181 |
SHL1B |
10 |
Φ160 |
Steel Plate Base Aluminum Roller |
5.5 |
|
21182 |
SHL1BN |
10 |
Φ150 |
Steel Plate Base Nylon Roller |
3.7 |
|
21183 |
SHL2BN |
10 |
Φ160 |
5.5 |
|
|
21184 |
SHL3BN |
10 |
Φ200 |
8.0 |
|
|
21191 |
SHL1G |
10 |
Φ150 |

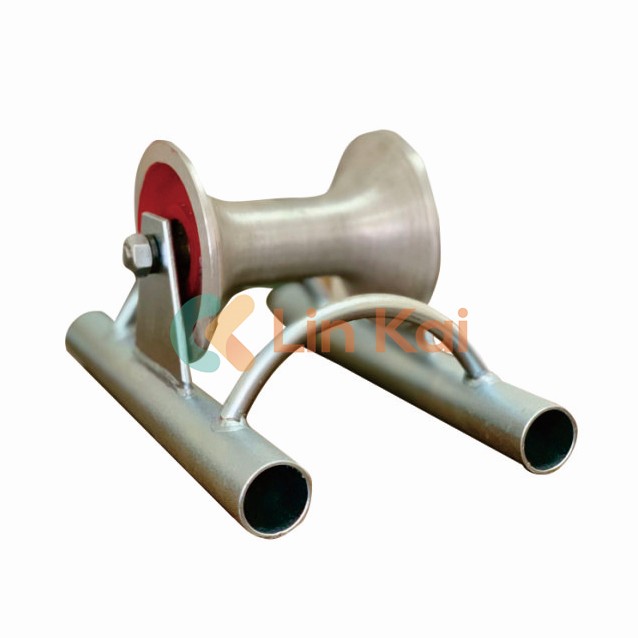

Steel Tubing Frame Aluminum Roller |
5.1 |
|
21192 |
SHL1GN |
10 |
Φ150 |
Steel Tubing Frame Nylon Roller |
3.3 |
|
21193 |
SHL2GN |
10 |
Φ160 |
5.7 |
|
|
21194 |
SHL3GN |
10 |
Φ200 |
8.0 |
|
|
21201 |
SHLG1 |
10 |
Φ150 |
Steel Tubing Long Legs Aluminum Roller |
9.4 |
|
21202 |
SHLG1N |
10 |
Φ150 |
Steel Tubing Long Legs Nylon Roller |
7.8 |

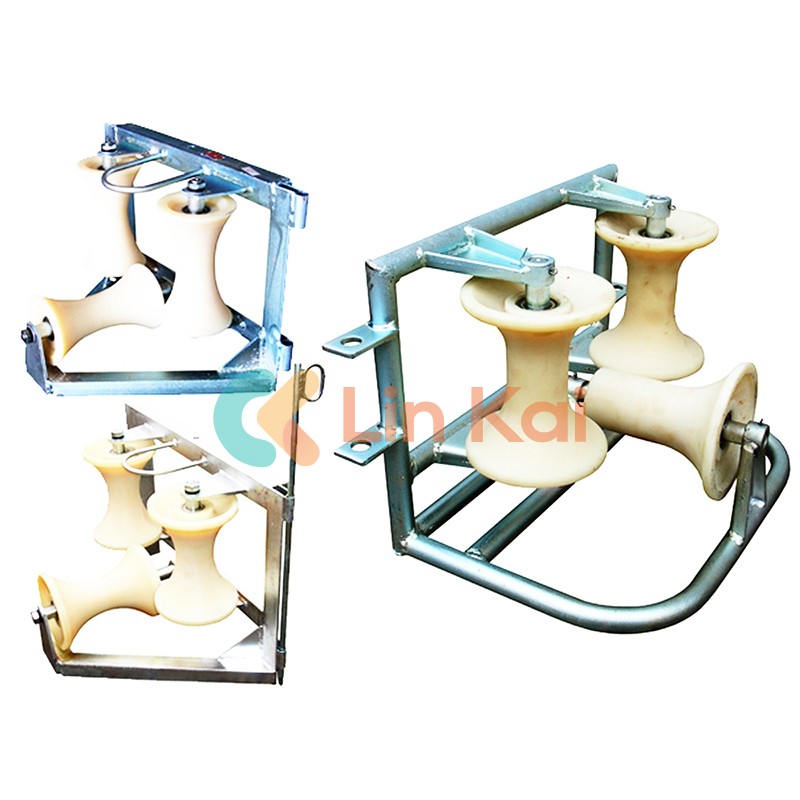

Cable Corner Rollers are used for installation power cable on corner of trench.They can be linked together with stake pins to form a suitable bend to guide cables around the corner.
|
Item No. |
Model |
Working load (KN) |
Size of Cables (mm) |
Weight (kg) |
|
21211 |
SHL |
8 |
≤ Ø80 |
5.5 |
|
21221 |
SHL2 |
10 |
≤ Ø150 |
12 |
|
21222 |
SHL2N |
10 |
≤ Ø150 |
10 |
|
21223 |
SHL3 |
10 |
≤ Ø150 |
11 |
|
21224 |
SHL3N |
10 |
≤ Ø150 |
9 |
