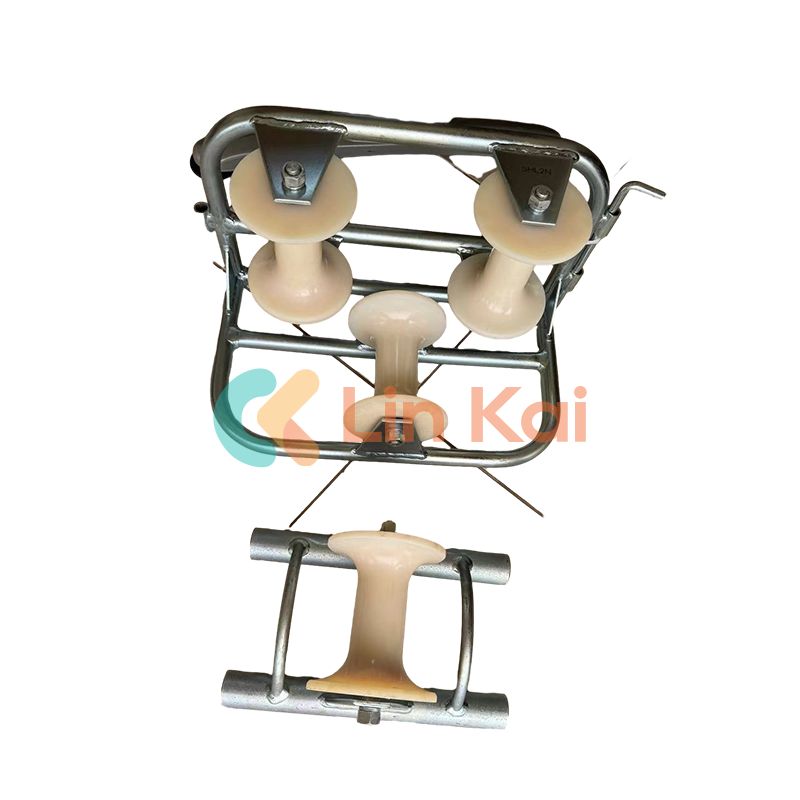

Durable Straight Line Cable roller is employed in the pulling and installation of subterranean cables. All of the Straight Line Cable rollers are mounted on bearings to lessen installer fatigue, and they are made to avoid pulling friction and damage. Straight Line Cable roller is made of aluminum and nylon can attach cables with the least amount of resistance possible without causing damage to the cable jacket.
Guiding and Supporting Cables:
In underground cable installation site, underground cable roller made in China is necessary to guide and support cables to prevent sagging or twisting. Cable laying rollers are commonly used to achieve this purpose. These cable rollers are usually installed at the bends of cable lines.
The primary function of underground cable roller is to ensure that cables move along the designed path. This is particularly important because cables pass through multiple points in the system, and external factors such as the weight of the cables and the environment can affect their movement significantly. By installing cable laying rollers, cables can be directed and supported optimally.
|
Item No. |
Model |
Working load (KN) |
Diameter of Cable (mm) |
Construction of Cable Roller |
Weight (kg) |
|
21171 |
SHL1 |
10 |
Φ150 |
Casting Aluminum Frame Aluminum Roller |
5.4 |
|
21172 |
SHL1N |
10 |
Φ150 |
Casting Aluminum Frame Nylon Roller |
3.6 |
|
21181 |
SHL1B |
10 |
Φ160 |
Steel Plate Base Aluminum Roller |
5.5 |
|
21182 |
SHL1BN |
10 |
Φ150 |
Steel Plate Base Nylon Roller |
3.7 |
|
21183 |
SHL2BN |
10 |
Φ160 |
5.5 |
|
|
21184 |
SHL3BN |
10 |
Φ200 |
8.0 |
|
|
21191 |
SHL1G |
10 |
Φ150 |
Steel Tubing Frame Aluminum Roller |
5.1 |
|
21192 |
SHL1GN |
10 |
Φ150 |
Steel Tubing Frame Nylon Roller |
3.3 |
|
21193 |
SHL2GN |
10 |
Φ160 |
5.7 |
|
|
21194 |
SHL3GN |
10 |
Φ200 |
8.0 |
|
|
21201 |
SHLG1 |
10 |
Φ150 |
Steel Tubing Long Legs Aluminum Roller |
9.4 |
|
21202 |
SHLG1N |
10 |
Φ150 |
Steel Tubing Long Legs Nylon Roller |
7.8 |
