Model:
|
SA-YZM7.5
|
Name:
|
Hydraulic Tensioner
|
||||
|
Selling Point:
|
Light, Convenient
|
Warranty:
|
1 Year
|
Certification:
|
ISO
|
Tesnion Force:
|
7,5KN
|

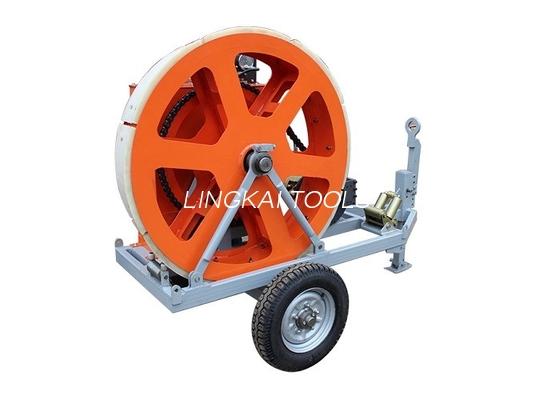

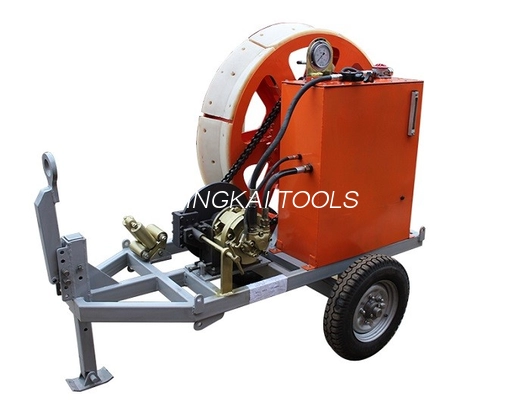

Stringing Equipment 0.75 Ton Hydraulic Tensioner For OPGW Stringing
Application:Stringing Equipment 0.75 Ton Hydraulic Tensioner For OPGW Stringing
Stringing Equipment 0.75 Ton Hydraulic Tensioner For OPGW Stringing is applicable to release wire, ground wire, cable in transmission line project.
Uses:Stringing Equipment 0.75 Ton Hydraulic Tensioner For OPGW Stringing
Apply to stringing the following size like ADSS, TFOC, OPGW-110, maximum conductor diameter 20 and various steel strand, ACSR,
fiber tow rope or small diameter steel wire tow rope.
Features:Stringing Equipment 0.75 Ton Hydraulic Tensioner For OPGW Stringing
1. Tension produced by haydraulic pressure;
2. It is covenient for transportation and construction in mountainous area because of light weight;
3. Easy operation and maintenance.
Characteristic:Stringing Equipment 0.75 Ton Hydraulic Tensioner For OPGW Stringing
1) high efficiency ;
2) safe and reliable;
3) widely used;
4) high quality
5) convenient to carry
Technical Data:Stringing Equipment 0.75 Ton Hydraulic Tensioner For OPGW Stringing
Oversize is 2300*1250*1620mm, weight 450kg,max tension is 7.5KN, rated tension is 5KN, max velcocity is 40m/min, diameter of tension wheel is 1100mm,applicable conductor wire <=LJ240,and <=LJ-185/10,suitable hydraulic oil type is No 46 antiwire hydraulic oil. max oil temperature is 70degress, rated working pressure is 25Mpa.
| Model Type | YL-75 |
| Overall Size(mm) | 2300*1250*1620 |
| Weight(kg) | 450 |
| Max Tension(KN) | 7.5 |
| Rated Tension(KN) | 5 |
| Max Velocity(m/min) | 40 |
| Diameter of Tension wheel(mm) | 1100 |
| Applicable Conductor Wire | ≤ LJ-240 |
| ≤ LJ-185/10 | |
| Suitable Hydraulic Oil Type | No.46 Antiwear Hydraulic Oil |
| Max Oil Temperature(°C) | 70 |
| Rated Working Pressure(MPa) | 25 |
Our Service:
High quality fasteners products with best price;
Many years excellent experience with pre-sale and after-sale service;
Strict quality control according to your requirement;
Professional packing team keep every pack safely;
Send you some free samples along with your cargo to share us quality;
