Model:
|
CWC150
|
Cutting Force:
|
20T
|
||||
|
Max Thicknedd:
|
Cu/Al Plate 10mm
|
Width:
|
150mm
|
Height:
|
Approx 440mm
|
Packing:
|
Wooden Case
|
Output 20T Width 150mm Max thickness 10mm Model CWC Hydraulic Bus Bar Cutter for Cutting
Application

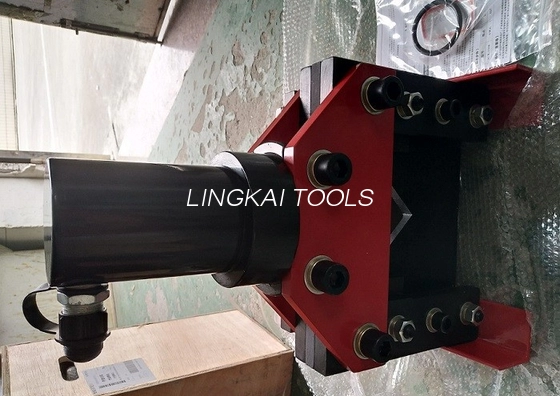

Portable Model CWC Hydraulic Bus Bar Cutter For Cutting is formed by high strength alloy steel precision.It is high efficacy due to smooth fracture surface and neat without burrs. It only takes a few seconds to cut off the Angle. It is mainly used in the iron tower factory, cutting off in transmission and distribution engineering construction site.
Hydraulic Copper Aluminum Bus-bar Cutter
|
Item number |
06242-1 | 06242-1A |
| Model | CWC-150 | CWC-200 |
|
Cutting force |
200KN | 300KN |
|
Max thickness of sheet |
CU/AL plate 10mm | 12mm |
|
Width of sheet |
CU/AL plate 150mm |
200mm |
|
Height |
approx.440mm | approx.460mm |
|
(KG) Weight |
approx.N.W30KG G.W33KG |
approx.N.W37KG G.W40KG |
|
Package |
wooden case | wooden case |
Configuration: It is used to cut off the copper and aluminum platoon,and thehydraulic pump needs to be matched.
