Model:
|
SA-YZ2X40
|
Name:
|
Cable Tensioner
|
||||
|
Tension Force:
|
2X40KN
|
Apply:
|
Stringing Conductor
|
Bullwheel:
|
MC Nylon Material
|
Weight:
|
4850kg
|

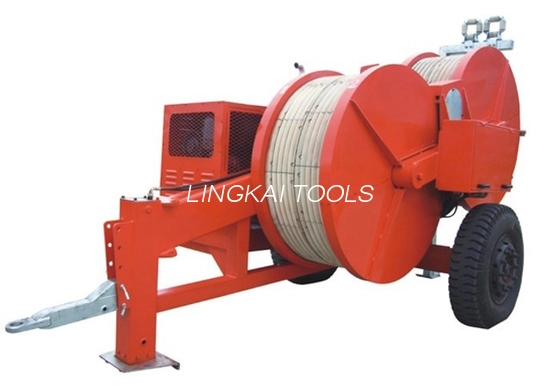

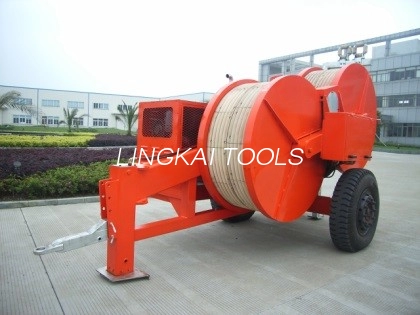

2x40KN Hydraulic Cable Tensioner Wire Tensioner For Stringing Overhead Line
Our SA-YZ2×40B Hydraulic Tensioner serves to string various types of conductors and earth wires. Either one-pull-one or one-pull-two is available.
The infinitely variable tension control system allows this SA-YZ2×40B Hydraulic Tensioner to realize the constant-tension conductor stringing operation. If a hydraulic failure happens, the spring applied hydraulically released multi-plate brake will act automatically. Thus, the operation is made safe.
Furthermore, our product is designed with two sets of hydraulic power output interface, which is able to connect the hydraulic conductor reel stand. Its bullwheel is specially lined with the wear-resistant MC nylon material.
Essential Parameters
2x40KN Hydraulic Cable Tensioner Wire Tensioner For Stringing Overhead Line
| Model | SA-YZ2*40B Hydraulic Tensioner |
| Maximum Tension (kN) | 2× 40 or 1× 80 |
| Continuous Tension (kN) | 2× 35 or 1× 70 |
| Maximum Speed (km/h) | 5 |
| Bullwheel Bottom of Groove Diameter (mm) | Φ1500 |
| Number of Grooves | 2× 5 |
| Maximum Pullback (kN) | 2× 40 or 1× 80 |
| Maximum Speedback (km/h) | 2× 1.5 |
| Maximum Diameter of Suitable Conductor (mm) | Φ40 |
| Engine Power / Speed (kW/rpm) | 51/2500 |
| Dimensions (mm) | 4500 × 2200 × 2800 |
| Weight (kg) | 4850 |
Main Components
2x40KN Hydraulic Cable Tensioner Wire Tensioner For Stringing Overhead Line
| Engine | Beinei Deutz air cooled diesel engine |
| Main Pump/Motor | Rexroth (BOSCH) |
| Reducer | RR (Italian) |
| Main Hydraulic Valve | Rexroth (BOSCH) |
| Radiator | AKG |
| Hydraulic Instrument | WIKA |
| Option | If use Deutz (Germany) diesel engine,the model is SA-YZ2×40A,item number:07191 |
| Others | According to customer requirement, our SA-YZ2×40B Hydraulic Tensioner can configure mobile control consoles. It is easy for one operator to control 2 machines simultaneously, which facilitates 4-conductor-stringing operation using two machines. The item number of control consoles is 07193. |
