Model:
|
JJM-5B
|
Engine:
|
Honda 390
|
||||
|
Driven:
|
Petrol
|
Force Pulling:
|
5T
|
Type:
|
Cable Pulling Winch
|
Apply:
|
Pulling Rope
|

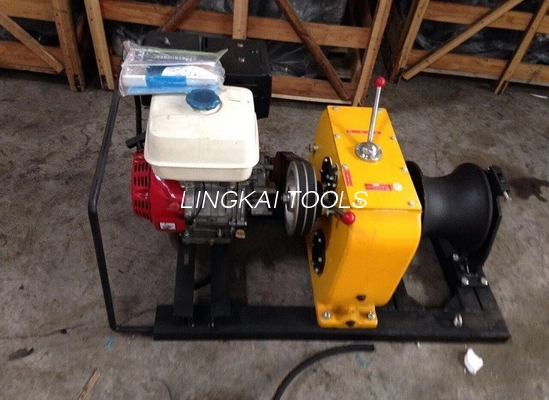

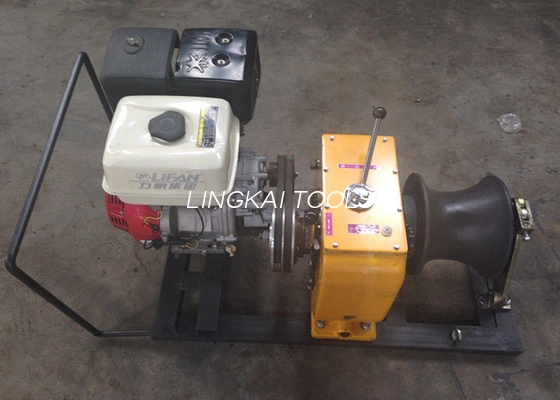

5 Ton Gasoline Powered Capstan Winch Gearbox Honda Engine Cable Pulling Winch
Application
5 Ton Gasoline Powered Capstan Winch Gearbox is used for tower erection,pole setting,stringing wire in electrical power line construction.
It is mainly used for erecting air high-voltage transmission lines and the laying of underground cables, gasoline engine powered winch automatic clamp brake and clutch transmission chain brake two kind of braking device, in the opposite direction are positive, the braking action.
Gasoline Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Features
1)Speedy and Efficient
2)Safe and Reliable
3)Compact structure
4)Widely used
5)Light weight
Technical Data
| Model | Gear | Pulling Force(KN) | Pulling Speed(m/min) | Dimensions(mm) | Weight(kg) |
| JJM-5B | Fast | 9 | 24 | 1100*525*600 | 180 |
| Mid | 15 | 14 | |||
| Mid | 30 | 9 | |||
| Slow | 50 | 5 |
