Description: |
Dupont Silk Rope |
Material: |
Polyester |
Break: |
2.5 - 120KN |
Diameter Of Rope: |
2-20 Mm |
Lead Time: |
Within 10 Days |
Packing: |
In Reel Or Optional |
We produce different pilot rope for stringing overhead transmission line, include anti twisting wire rope, dynema rope, nylon rope, polyester rope.
DOUBLE LAYER BRAIDED UHMWPE ROPE (DYNEMA ROPE)
| Item No. | Nominal diameter (mm) | Breaking Load (KN) | Diameter after covering Polyester (mm) | Net Weight (kg/1000m) | Weight After Covering (kg/1000m) |
| 18170A | 2 | 4.3 | 3 | 2.70 | 4.8 |
| 18170B | 3 | 8.5 | 4.5 | 4.65 | 9.6 |
| 18170D | 4 | 16.6 | 5.5 | 9.31 | 13.5 |
| 18170F | 5 | 24.4 | 7 | 14 | 20 |
| 18170G | 6 | 31.9 | 8 | 20 | 28.2 |
| 18170H | 7 | 43.6 | 9 | 27 | 36 |
| 18170J | 8 | 58.8 | 10 | 35 | 48.4 |
| 18170K | 9 | 70.3 | 11 | 42 | 58.5 |
| 18170L | 10 | 92.5 | 12 | 56 | 77 |
| 18170M | 11 | 115 | 13 | 70 | 97 |
| 18170N | 12 | 137 | 14 | 84 | 113.4 |
| 18170P | 13 | 159 | 15 | 98 | 132 |
| 18170Q | 14 | 180 | 16 | 106 | 150 |
| 18170R | 16 | 211 | 18 | 132 | 177 |
| 18170S | 18 | 296 | 21 | 186 | 247.3 |
The DYNEMA rope is specially braided from ultra high molecular weight polyethylene fiber, and covered with polyester layer, anti twisting and light weight.
It is used as pilot rope or pulling rope in overhead transmission line stringing operation. It also can be used for hot line working.
The rope is double layer braided with spliced eye on both ends. The rope also can be colored in different colors for hot line working.

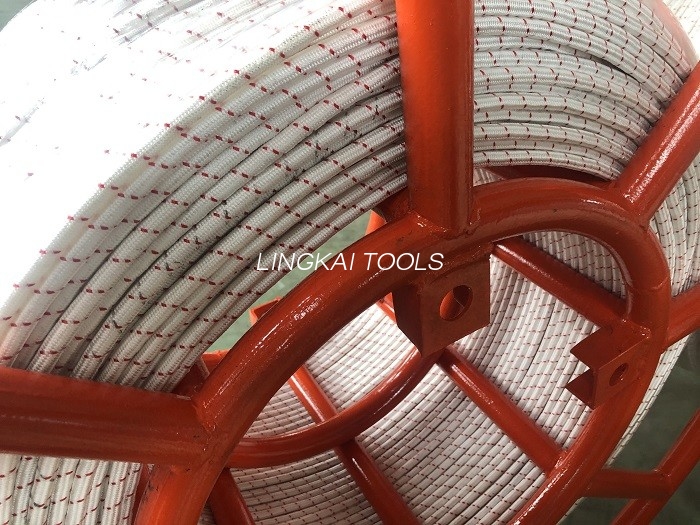

The rope can be packed in plastic bags or steel drum. The steel drum can be installed on the reel winder of puller directly
DOUBLE LAYER BRAIDED DUPONT POLYESTER ROPE
| Item No. | Nominal diameter | Breaking Load (KN) | Elongtation with 30% of breaking load | Standard Length | Net Weight (kg/1000m) | |
| 18171A | 3.5 MM | 2.5 | 2% | 1000 | 12.5 | |
| 18171B | 4 MM | 4 | 2% | 1000 | 15.5 | |
| 18171C | 5 MM | 5 | 2% | 1000 | 21 | |
| 18171D | 6 MM | 10 | 2% | 1000 | 35 | |
| 18171E | 8 MM | 15 | 2% | 1000 | 60 | |
| 18171F | 10 MM | 26 | 2% | 1000 | 80 | |
| 18171G | 12 MM | 42 | 2% | 1000 | 114 | |
| 18171H | 14 MM | 54 | 2% | 1000 | 148 | |
| 18171J | 16 MM | 70 | 2% | 1000 | 180 | |
| 18171K | 18 MM | 96 | 2% | 1000 | 230 | |
| 18171L | 20 MM | 120 | 2% | 500 | 290 | |
The fiber rope is specially braided from double layer high strength polyester fiber, anti twisting and light weight. It is used as pilot rope or pulling rope in overhead transmission line stringing operation. It also can be used for hot line working.
The rope is double layer braided with spliced eye on both ends. The rope also can be colored in different colors for hot line working.
