Engine:
|
YAMAHA Gasoline
|
Apply:
|
Power Line Construction
|
||||
|
Approve:
|
ISO
|
Weight:
|
168KG
|
Use:
|
Hoisting
|
Name:
|
Cable Pulling Winch
|
Power Line Construction Hand Winch Cable Puller / Small Wire Puller High Precision Construction
Application

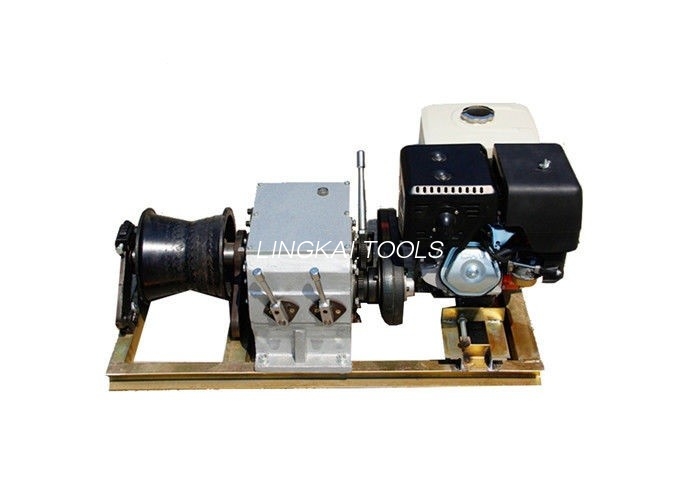

8 Ton YAMAHA Petrol Cable Pulling Winch for Lifting in Power Line Construction is used for tower erection,pole setting,stringing wire in electrical power line construction.It is suitable for field, mountain construction.And it is flexible due to small and light.It drives belt.
Features:
1)Speedy and Efficient; :
2)Safe and Reliable; :
3)Compact structure; :
4)Small volume; :
5)Light in weight;
6)Easy operation:
7)High efficiency :8)Convenient to carry
|
Item number |
Model |
Rotation direction |
Gear |
(RPM) rotational speed |
(M/MIN) Traction speed |
(T) Tractive force |
(KW) Power |
(MM) Outline size |
(KG) Weight |
| 09121 |
JJQ-3Q 6HP Gasoline engine |
corotation |
鈪燬low |
9.0 | 4.0 | 3.0 | 4.04 | 840x450x500 | 82 |
|
鈪ast |
16.0 | 6.6 | 1.8 | 780x450x500 | 85 | ||||
|
reversal |
Reverse |
7.5 | 3.3 |
No lifting |
|||||
| 09123 |
JJQ-50 9HP Gasoline engine |
corotation |
鈪?/p> Slow |
6.5 | 4.0 | 5.0 | 6.61 | 1000x550x520 | 135 |
|
鈪?/p> Fast |
16.0 | 9.0 | 2.2 | ||||||
|
reversal |
Reverse |
7.0 | 4.0 |
No lifting |
|||||
| 09125 |
JJQ-80 13HP Gasoline engine |
corotation |
鈪?/p> Slow |
5 | 3 | 8 | 9.60 | 1000x550x520 | 168 |
|
鈪? Fast |
9 | 5 | 4.5 | ||||||
|
reversal |
Reverse |
5 | 3 |
No lifting |
