Slow: |
14m/min |
Fast: |
24m/min |
Line Pull: |
Fast 3ton |
Reverse: |
13m/min |
Name: |
Cable Pulling Winch |

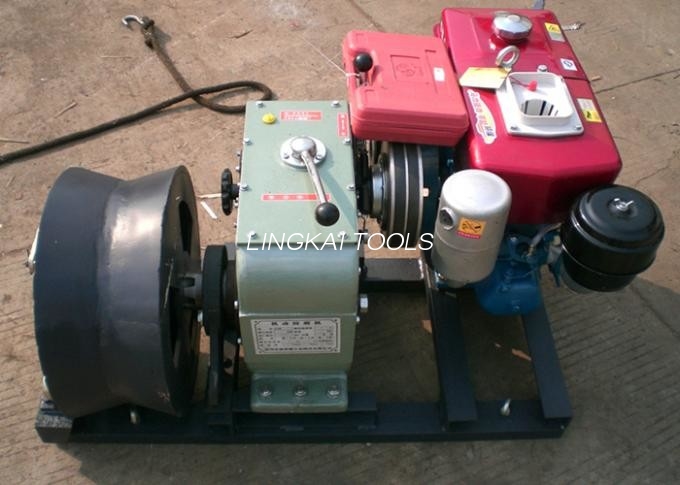

5Ton Reversing Cable Pulling Winch With Water Cooled Diesel Engine
Application
Diesel powered winch, the name found in the motor-driven winch widely applied area, it is necessary for erecting empty cable underground wiring of the tight line, pole construction products, in a variety of complex environment for the smooth and convenient erection of wire lifting, traction or tight line. Diesel powered winch is widely used in electric power, telecommunications, municipal engineering construction tight group vertical tower or motor line, suitable for field without electric field.
Features
1)small size
2)compact structure;
3)light weight
4)high efficiency
5)easy operation
6)convenient to carry
7)high quality
Technical Data for 5Ton Reversing Cable Pulling Winch With Water Cooled Diesel Engine
| Model Type | Engine Power | Gear | Pulling Speed(m/min) | Line Pull(Ton) |
|
JJM5C |
Diesel Engine | Slow | 14 | 5 |
| Quick | 24 | 3 | ||
| Reverse | 13 | no lifting |
