Model: |
SLW20 |
Cable Dia: |
16 ~ 20 Mm |
Load: |
10 KN |
Weight: |
0.8 Kg |
Material: |
Stainless Steel |
Name: |
Cable Grips Puller |

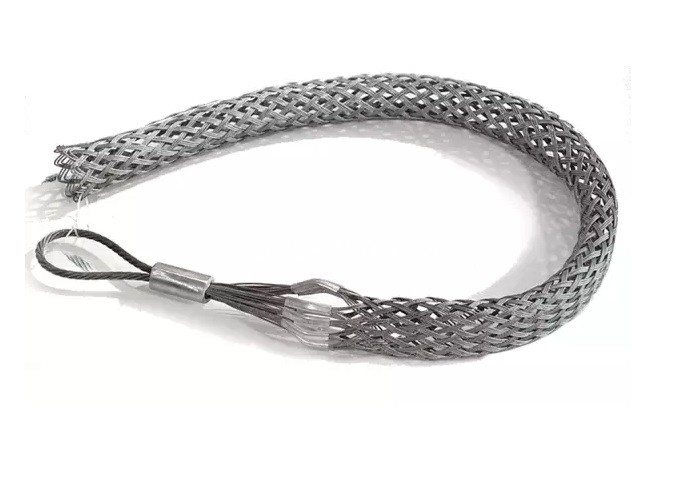

SLW50 Stainless Steel Single Side Dragging Cable Grip With Strands Weave
Cable Grips Cable Pulling rope socks:
SLW50 Stainless Steel Single Side Dragging Cable Grip With Strands WeaveThe cable is first covered, and then pulled by manual or lifting tools, so as to achieve the purpose of wiring and protecting the cable. The cable can also be hung with a net (note that the net body of the net sleeve is gridding, so that it becomes tighter and tighter. It is very convenient to use if you want to loosen only by pushing in the opposite direction of the cable.
Technical Data:
SLW50 Stainless Steel Single Side Dragging Cable Grip With Strands Weave
| Item Number | Model | Diameter of Suitable Cable (mm) | Rated Load (kN) |
| 21361 | SLW16 | Φ12~16 | 8 |
| 21362 | SLW20 | Φ16~20 | 10 |
| 21363 | SLW25 | Φ20~25 | 12 |
| 21364 | SLW37 | Φ25~37 | 18 |
| 21365 | SLW50 | Φ37~50 | 28 |
| 21366 | SLW60 | Φ50~60 | 15 |
| 21367 | SLW80 | Φ60~80 | 20 |
| 21368 | SLW100 | Φ80~100 | 25 |
| 21369 | SLW120 | Φ100~120 | 30 |
| 21370 | SLW150 | Φ120~150 | 30 |
Application:
SLW50 Stainless Steel Single Side Dragging Cable Grip With Strands Weave
Used for traction power transmission line construction in use.
There are many types we can provide,also can do as your demand.
Different types with different specifications,We are OEM,we can do as your demand.
Cable grips(also known as:cable nets,intermediate nets,wire nets,cable nets,power nets,cable nets,fiber nets, ground nets).
| Shipping term | Shipping time | Shipping address |
| By Express | 3-5 days | Door to door |
| By air | 5-7 days | Port to port |
| By sea | 15-45 days | Port to port |
Material
This products is made of double strands galvanized wire to weave,uniform grid high strength non-slip.All the materials of our cable grip contain hot galvanizing,304 stainless steel,316 stainless steel(Single strand,double strands and triangular loop)
How to use the cable pulling grip?
1. Start the lacing from the eye end or anchoring end of the cable grip
2.Thread the lace through the first two loops of the split and pull
3. Don not pull the lace too tight at this stage leave a space between adjoin-ing loops roughly equal to the width.
4. As you continue the length, pull the open sides of the grips as wide apart as required.
5. Try to achieve an even and neat lace-up as this assists with the strength of the grip when pulling.
6. Finally, tie the end of lace once or twice round the end of the cable grip twisting the ends together securely.Excess lace can be cut off.
