Model:
|
HT300
|
Name:
|
Cable Lug Crimping Tools
|
||||
|
Form:
|
Six Angle
|
Length:
|
460 Mm
|
Weight:
|
4.6 Kg
|
Out Put:
|
60 KN
|

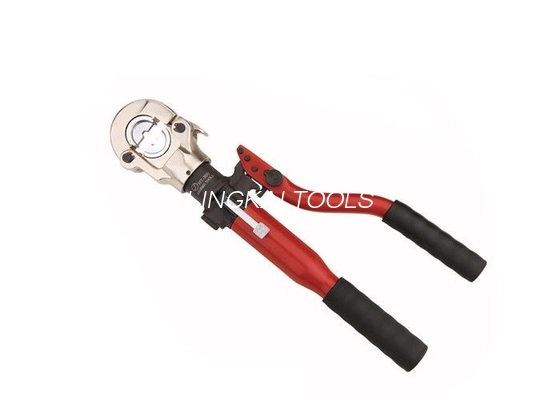

HT-300 Hydraulic Cable Lug Crimping Tool,Six Angle Hydraulic Crimping Tools
Characteristic
HT-300 Hydraulic Cable Lug Crimping Tool,Six Angle Hydraulic Crimping Tools
1 Compression mould can be replaced, quick and safe operation;
2 The head can do a 360 degree rotation.
3 Compression configuration: 16, 25, 35,50,70,95,120,150,185,240,300mm2
1 The tool has a double speed action:a fast advancing speed for rapid approach of the blades to the connector and a slower more powerful speed for cutting
2 For ease of operation and comfort the operator,the tool head can be fully rotated through 180° degrees
3 The built-in safety valve will by-pass the oil supply when the maximum pressure is reached and the pressure release system can be easily operated at any stage of compression

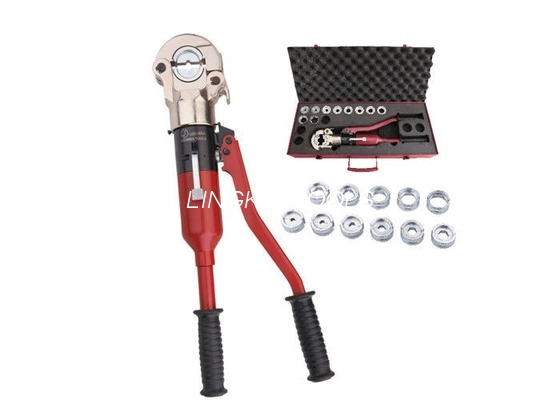

4 With interchangeable crimping dies
Technical Data of HT-300 Manual Hydraulic Crimping Plier Cable Lug Crimping Tool
| Model Type | Output(KN) | Crimping Range(mm2) | Length(mm) | Packing form | Crimping Form | Weight(kg) |
| HT-300 | 60 | 16-300 | 460 | Iron box | Six Angle |
4.6 |
Specifications
HT-300 Hydraulic Cable Lug Crimping Tool,Six Angle Hydraulic Crimping Tools
1. Light weight,easy to carry and simple to operate.The wedge with automatic device,durable use.
2. Raplaceable bypass cartridge.
3. External pressure adjustment swivel head.
4. Fiberglass handles.
5. For interchangeable die.Flip top style closed crimping head,rotates 360.Automatic retraction when crimp is complete Manuel retraction in case of need.
Detailed Product Description and function
1.manual hand pump operated, for copper pipe, steel tube, plastic water pipe
-It is suit for common water pipe, wire pipe, carbon steel pipe, conduit tube, bending the angle 90
-The upper plate of the new design is cut by one time, it won’t be broken.
This machine could bend pipes toward any direction you want;the largest bending angle is 90°
2. Suitable for use in bending brass pipes,steel pipes,hydraulic pipes,coated and uncoated pipes.
3. We can make moulds in other specifications according to customers requirements.
