Model: |
SLX |
Type: |
Swivel Links |
Material: |
Steel |
Load: |
1T |
Weight: |
0.4 KG |
Use: |
Pulling Rope |

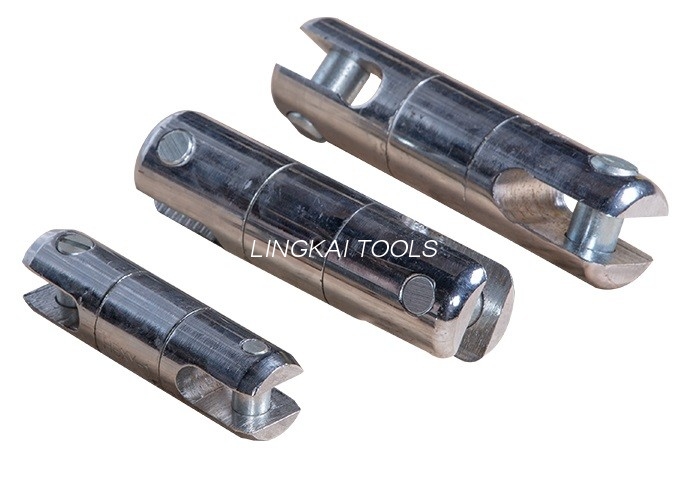

SLX Model Galvanized Line Pulling Swivels,Swivel Steel Cable Connector
Galvanized Line Pulling Swivels
SLX Model Galvanized Line Pulling Swivels,Swivel Steel Cable Connector
* It is suitable for connecting the wire rope and the net sleeve connecting the wire rope in the transmission line, and releasing the twisting force of the wire rope.
* it is made of alloy tool steel, with high strength and light weight, which can be easily passed through pulleys and tension machines, tractors and other equipment.
Swivel Steel Cable Connector Technical Data
SLX Model Galvanized Line Pulling Swivels,Swivel Steel Cable Connector
| Model | Main Size(mm) | Rated Load(KN) | Weight(KG) | ||||
| A | B | C | D | E | |||
| SLX-0.5 | 19 | 61 | 40 | 8 | 9 | 5 | 0.2 |
| SLX-1 | 30 | 100 | 70 | 12 | 13 | 10 | 0.4 |
| SLX-2 | 35 | 120 | 90 | 14 | 14 | 20 | 0.55 |
| SLX-3 | 37 | 129 | 95 | 16 | 16 | 30 | 0.65 |
| SLX-5 | 42 | 154 | 116 | 18 | 17 | 50 | 1.5 |
| SLX-6.5 | 51 | 185 | 140 | 20 | 19 | 65 | 2.0 |
| SLX-8 | 57 | 220 | 165 | 24 | 22 | 80 | 2.4 |
| SL80Y | 57 | 207 | 152 | 24 | 20 | 80 | 2.4 |
| SL130 | 62 | 248 | 192 | 26 | 24 | 130 | 3.5 |
| SL180 | 75 | 294 | 222 | 26 | 26 | 180 | 7.2 |
| SL250 | 85 | 331 | 251 | 30 | 30 | 250 | 10.6 |
| SL250Y | 80 | 323 | 243 | 30 | 30 | 250 | 8.0 |
| SL320 | 85 | 346 | 264 | 38 | 30 | 320 | 9.7 |
| SL400 | 100 | 383 | 293 | 43 | 33 | 400 | 17 |
Swivel connector for pilot wire
1. made of top-quality steel and with heat treatment;
2. small and can go through various pulley
3. safety,simple
Application:SLX Model Galvanized Line Pulling Swivels,Swivel Steel Cable Connector
used to connect conductors and steel reinforced Aluminum strand with pulling wire rope.
Features: SLX Model Galvanized Line Pulling Swivels,Swivel Steel Cable Connector
1. made of top-quality alloy steel through heat treatment
2. small and can go through various pulleys.
3. can release the torque of the steel wire rope.
