Model: |
SCHX-610 |
Max Compression(KN): |
150 |
Weight: |
5.3kg |
Compress Range(mm2): |
50-400 |
Type: |
Split Type |
Name: |
Cable Crimping Tools |

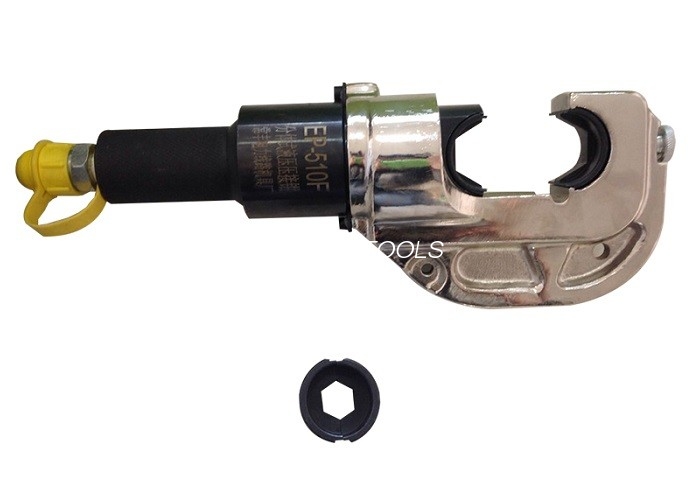

Split Type Hydraulic Cable Lug Crimping Tools,Hydraulic Compressor
Application
Split Type Hydraulic Cable Lug Crimping Tools,Hydraulic Compressor
It is used to compress the copper and aluminum terminals.
Characteristic
Split Type Hydraulic Cable Lug Crimping Tools,Hydraulic Compressor
C type open design, convenient to put and get compression tube.Max open to 50mm and compress tube to 240mm2 easily.
Use high speed connector which easy to remove.
Notes
Split Type Hydraulic Cable Lug Crimping Tools,Hydraulic Compressor
Packaged in steel box.
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.
All products will 100% test before delivery to ensure the quality.
Technical Data of 150KN Split type hydraulic crimping tool hydraulic compressor for 50-400mm2
| Model | SCHX-610 | |||
| Max compression(KN) | 150 | |||
| Compress range(mm2) | 50-400 | |||
| Weight(kg) | 5.3 | |||
| Compress die size | 50,70,95,120,150,185,240,300,400 | |||
| Applicable pump | HPX-700,HPX-700A,PEX-1,PEX-2 | |||
Our Service:
High quality fasteners products with best price;
Many years excellent experience with pre-sale and after-sale service;
Strict quality control according to your requirement;
Professional packing team keep every pack safely;
Send you some free samples along with your cargo to share us quality;
About us: Lingsheng Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China. We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work. Our Tubular Gin Pole, Come Along Clamp, Wire Rope Pulley Block, Nylon Sheave Hoisting Tackle, Cable Mesh Sock Grip, Line Stringing Swivel…all are OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world, and has wined the best brand reputations. Some items like the Cable Drum Trailer, and the cable jack stands we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either Technical questions or Products requirements. Please approach us.
