Model:
|
JJM5Q
|
Name:
|
Petrol Cable Winch
|
||||
|
Type:
|
Fast Speedy
|
Force:
|
5T
|
Power:
|
9HP
|
Weight:
|
130 Kg
|

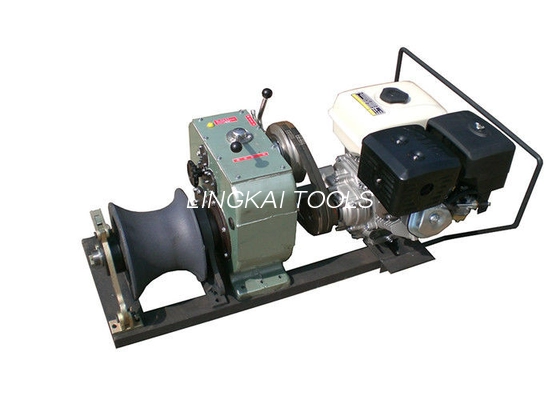

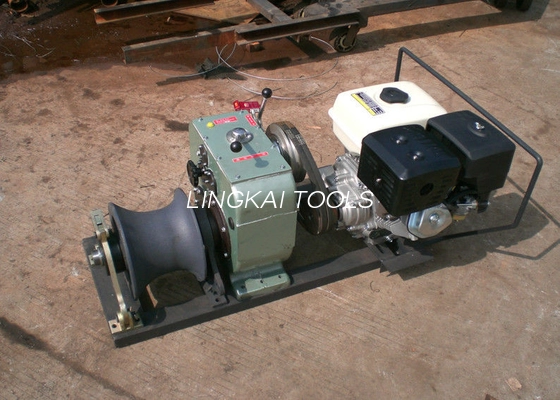

5 Ton Speedy Big Drum Wtih Petrol Engine Powered Winch For Cable Pulling
Winch Manufacturers For 5 Ton Petrol Engine Powered Fast Speed Winch is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even
cylindrical shape and coming with steel rope.
Technical Data for 5 Ton Petrol Engine Powered Fast Speed Winch:
Model JJM5B, it has the fast pulling force 9KN, 24 m/min speed, mid level has 15KN, 30KN, and pulling force is 14m/min, and 9m/min. In our Plant, we are making the eletrcical, gasoline, diesel engine driven, and HONADA, YAMAHA, Domestic Brand motor, related, 1,3,5T...., if you are interested with us, freely find us, willing to support you whatever.
| Model | Gear | Pulling Force(KN) | Pulling Speed(m/min) | Dimensions(mm) | Weight(kg) |
| JJM-5B | Fast | 9 | 24 | 1100*525*600 | 130 |
| Mid | 15 | 14 | |||
| Mid | 30 | 9 | |||
| Slow | 50 | 5 |
Speedy 5 Ton Big Drum With Petrol Engine Power Winch for Cable Pulling
According to customers’ response and field investigation, this machine has wide usage, such as rod up, a vertical rod, the pull rod, line release, line reel, the bridge plate traction, lifting and other purposes.
The machine has the interlocking brake device, accurate positioning, excellent braking performance , flexible usage, safety and trust.
The machine is now supported by gasoline engine, diesel engine, electric or imported gasoline engine.
Our Service:
High quality fasteners products with best price;
Many years excellent experience with pre-sale and after-sale service;
Strict quality control according to your requirement;
Professional packing team keep every pack safely;
Send you some free samples along with your cargo to share us quality;
