Max. Hydraulic Pressure (MPa): |
70,94 |
Max. ACSR Size (mm²): |
240,500,720,1440,2500 |
Die Set: |
16-400mm2 |
Max. Crimping Force: |
300tons |
Stroke (mm): |
22-35 |
Use: |
Compressor |
Max. Compression Force: |
25T-300T |
Application: |
Crimping ACSR |

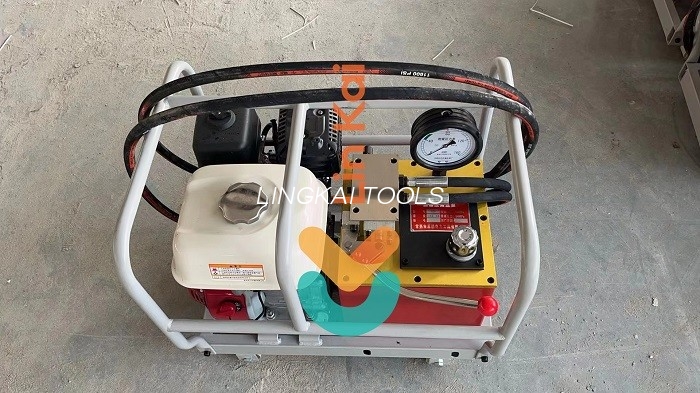

Introducing our latest innovation, this incredibly powerful hydraulic pump boasts a double stage pump output that guarantees incredible performance. We have equipped it with a Honda engine to provide ample power to the cutting tool, hydraulic compressor, punching machine, and other construction machinery that are operated in challenging environments, such as railways, rescue operations, construction sites, and remote areas that lack access to electric power.
In addition to its noteworthy performance, this high-pressure hydraulic pump station is a gasoline motor-driven hydraulic pump station designed to be mounted on a hand cart, making it more portable and easier to transport from one site to another.
The newly developed Gasoline Engine Hydraulic Pump Station is a marvel of engineering, weighing less than 10 kg and providing a speed that is three times faster than its previous iterations. Additionally, the new aluminum alloy oil tank ensures that the hydraulic pump station dissipates heat more efficiently, enhancing its overall performance and durability.
Gasoline Engine Hydraulic Pump Station
| Item No. | Description | Hydraulic Pressure (MPa) | Max Pressure (Mpa) | Oil Flow (L/min) | Power (HP) | Weight (kg) |
| 16146 | Gasoline motor driven hydraulic pump station mounted on hand cart | 80 |
94 | 11.02-2.05 | 5.0 | 55 |
Application: It should be noted that the pump stations simply supply electricity to other devices or hydraulic compressors. The Honda GX160 is the gasoline engine. A normal hydraulic hose is three meters long. Extended Hose is not required.
Conductor Jointing Machine Motorized
| Item No. | Model | Max. Compression Force (KN) | Max. Hydraulic Pressure (MPa) | Max. ACSR Size (mm²) | Stroke (mm) | Weight (kg) |
| 16101 | QY-25 | 250 | 70 | 240 | 22 | 6 |
| 16102 | QY-45 | 450 | 70 | 240 | 25 | 12 |
| 16103 | QY-65 | 650 | 94 | 500 | 25 | 25 |
| 16104 | QY-125 | 1250 | 94 | 720 | 25 | 40 |
| 16105 | QY-200 | 2000 | 94 | 1440 | 25 | 85 |
| 16106A | QY-300 | 3000 | 94 | 2500 | 35 | 126 |
Hexagon Compression Die sets
| Item No. | Matching Compressor | Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal) |
| 16121 | QY-25 | Copper or Aluminum Terminators 16-240mm2 |
| 16122 | QY-35 | L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm |
| 16123 | QY-65 | L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
| 16124 | QY-125 | L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
The power source for hydraulic compressors or other equipment is made possible by the 80 MPa High-Pressure Motorized Hydraulic Pump Station. This equipment is designed to handle heavy-duty tasks with ease.
Equipped with a HONDA GX160 gasoline motor, this pump station is capable of delivering the performance needed to get the job done. Additionally, the standard hydraulic hose measures 3 meters in length. If necessary, a longer hose may be added as an option.
Product Packaging:
Shipping:
Q1: What is the brand name of the hydraulic crimping tool?
A1: The brand name of the hydraulic crimping tool is Lingkai.
Q2: What is the model number of the hydraulic crimping tool?
A2: The model number of the hydraulic crimping tool is YBQA-80-03.
Q3: Where is the hydraulic crimping tool manufactured?
A3: The hydraulic crimping tool is manufactured in China.
Q4: Is the hydraulic crimping tool certified?
A4: Yes, the hydraulic crimping tool is certified with ISO CE.
Q5: What is the minimum order quantity for the hydraulic crimping tool?
A5: The minimum order quantity for the hydraulic crimping tool is 1 set.
Q6: What is the price of the hydraulic crimping tool?
A6: The price of the hydraulic crimping tool is GET THE LATEST.
Q7: How is the hydraulic crimping tool packaged?
A7: The hydraulic crimping tool is packaged in a wooden case.
Q8: How long does it take to deliver the hydraulic crimping tool?
A8: It takes 3-7 working days to deliver the hydraulic crimping tool.
Q9: What are the payment terms for the hydraulic crimping tool?
A9: The payment terms for the hydraulic crimping tool is T/T.
Q10: What is the supply ability of the hydraulic crimping tool?
A10: The supply ability of the hydraulic crimping tool is 1000 sets per month.
