APPROVED:
|
ISO CE
|
MODEL:
|
SLW-2
|
||||
|
ACSR DIA:
|
120-150
|
RATED LOAD:
|
20KN
|
BREAKING:
|
40KN
|
FEATURE:
|
ONE OR TWO HEAD
|
Single Head Conductor Mesh Sock Joints Cable Sleeve Mesh Sock Joint

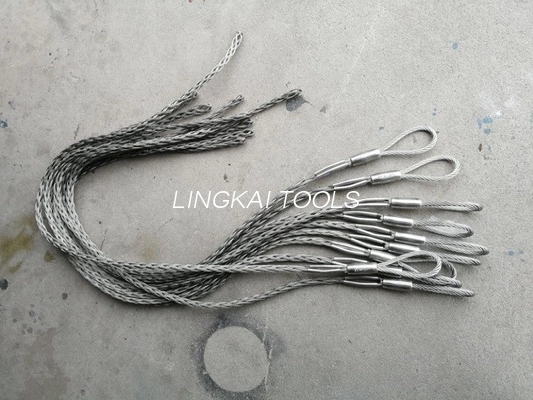

ONE HEAD TYPE
The one head type temporary mesh sock joints are specifically designed to temporarily connect the aluminum, steel, or copper conductor to the pulling rope. They consist of variable pitch steel wires, which effectively distribute the gripping effect on the conductor.
| Model | Conductor size (mm2) | Rated load (kN) | Breaking load (kN) |
| SLW-1 | 25-70 | 10 | 20 |
| SLW-1.5 | 70~90 | 15 | 30 |
| SLW-2 | 120~150 | 20 | 40 |
| SLW-2.5 | 185~240 | 25 | 50 |
| SLW-3 | 300~400 | 30 | 60 |
| SLW-4 | 500~630 | 40 | 80 |
| SLW-5 | 720 | 50 | 125 |
| SLW-7 | 900 | 70 | 175 |
| SLW-8 | 1000~1120 | 80 | 200 |
Features:
1.It made of top-quality steel through heat treatment and galvanized for surface.

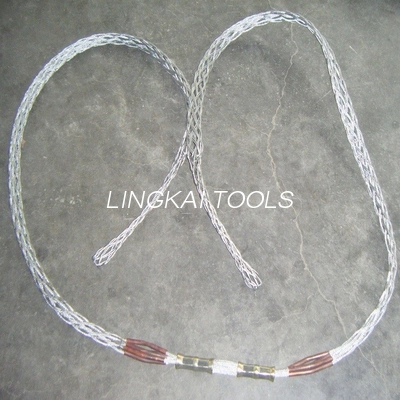

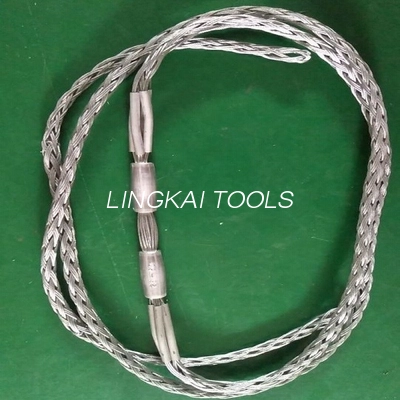

2.It connected for two head,one head is galvanized steel wire rope and the other head contect conductor.
Application:It is used for connecting and holding firmly conductor.
Cable Mesh Sock Joints
|
Item number |
Model |
(MM) Applicable Cable Diameter |
(KN) Rated Load |
(Kg) Weight |
| 21361 | SWL-16 | Φ12-16 | 10 | 0.8 |
| 21362.8 | SWL-20 | Φ16-20 | 10 | 0.8 |
| 21363 | SWL-25 | Φ20-25 | 15 | 1.0 |
| 21364 | SWL-37 | Φ25-37 | 15 | 1.0 |
| 21365 | SWL-50 | Φ37-50 | 15 | 1.0 |
| 21366` | SWL-60 | Φ50-60 | 25 | 2.4 |
| 21367 | SWL-80 | Φ60-80 | 25 | 2.4 |
| 21368 | SWL-100 | Φ80-100 | 25 | 2.4 |
| 21369 | SWL-120 | Φ100-120 | 30 | 2.6 |
| 21370 | SWL-150 | Φ120-150 | 30 | 2.6 |
Configuration:
鈼?Apply to installing electrcity cable communication cable and normal cable.
