Certification: |
ISO |
Brand: |
Lingsheng |
Material: |
Steel |
Apply: |
Cable Pulling |
Weight: |
2.1-2.7kg |
Type: |
Cable Pulling Grip |

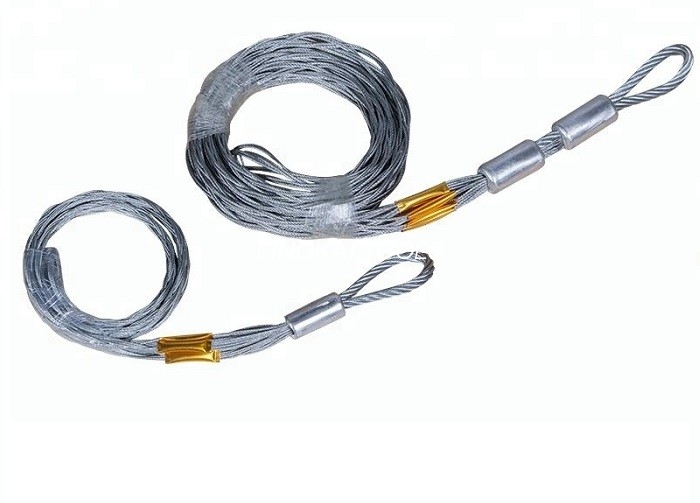

Tensile Galvanised Steel Wire Cable Pulling Grips Mesh Sock Sing Eye Type
HighTensile Galvanised Steel Wire Cable Pulling Grips Mesh Sock
Cable grips(also known as:cable nets,intermediate nets,wire nets,cable nets,power nets,cable nets,fiber nets, ground nets).Cable Grip be packed by plastic bag then in Carton, or as your request.There are many types we can provide,also can do as your demand.
Quick Information:
Tensile Galvanised Steel Wire Cable Pulling Grips Mesh Sock Sing Eye Type
1. Apply for AL, Steel or Cu Conductor
2. Conductor size: 70~1120mm2
3. Rated load: 15~80kN
4. Breaking load: 30~200kN
ONE HEAD TYPE
The one head type temporary mesh sock joints are specifically designed to temporarily connect the aluminum, steel, or copper conductor to the pulling rope. They consist of variable pitch steel wires, which effectively distribute the gripping effect on the conductor.
Data Sheet---single head type
| Model | Rated Load | Applicable Conductor | Weight |
| KN | mm2 | kg | |
| DG-10 | 10 | 25-50 | 0.8 |
| DG-15 | 15 | 70-95 | 1 |
| DG-20 | 20 | 120-150 | 1.2 |
| DG-25 | 25 | 185-240 | 1.25 |
| DG-30 | 30 | 300-400 | 1.5 |
| DG-50 | 50 | 500-630 | 2.1 |
Double head type
| Model | Rated Load | Applicable Conductor | Weight |
| KN | mm2 | kg | |
| SG-10 | 10 | 25-50 | 1.6 |
| SG-15 | 15 | 70-95 | 2 |
| SG-20 | 20 | 120-150 | 2.4 |
| SG-25 | 25 | 185-240 | 2.5 |
| SG-30 | 30 | 300-400 | 3 |
| SG-50 | 50 | 500-630 | 4.2 |
FAQ:
1. Are you a manufacturer or a trading company?
We are a professional fasteners manufacturer with rich experience. And in order to do business with your company well, we established a branch to open the foreign trade fields.
2. Do you offer free samples?
We can provide free samples below 10 USD and you should pay the freight. After you place an order, we will give back the freight.
3. Do you accept our design on products or boxes?
Yes. We accept customized design and we have a professional design team who can design products based on your requirements.
4. How long is your delivery time?
Generally 7-10 days if the goods are in stock or 15-30 days not in stock.In a word, according to the order quantity.
Factory price
We are the trading company with our own directly factory. So you can get high quality products with factory price. For big order and regular Customers, we give favorable discounts.
Feedback:
Your satisfaction and positive feedback is very important to us. If you have any problems with our Tools or services, please feel free to contact us. We will do our best to solve any problems and provide you the best customer services
How to use the cable pulling grip?
1.Start the lacing from the eye end or anchoring end of the cable grip
2.Thread the lace through the first two loops of the split and pull
3.Don not pull the lace too tight at this stage leave a space between adjoin-ing loops roughly equal to the width.
4.As you continue the length, pull the open sides of the grips as wide apart as required.
5.Try to achieve an even and neat lace-up as this assists with the strength of the grip when pulling.
6.Finally, tie the end of lace once or twice round the end of the cable grip twisting the ends together securely.Excess lace can be cut off.
