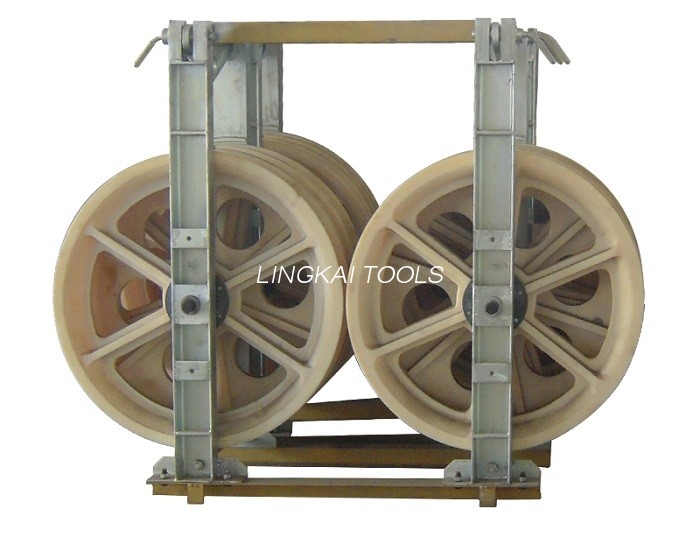

Name: |
Bundled Stringing Block |
Type: |
Three Nylon Conductor Pulley |
Construction: |
In Transmission Line |
Size: |
822 *110mm |
Material: |
MC Nylon |
Approved: |
ISO |
stringing equipment tools three wheel conductor pulley blocks
| Model |
Wheel size Diameter * Width (mm) |
Conductor size (mm2) |
Rated load (kN) |
Weight (kg) |
Wheel material |
| SHS-508X75 | 508*75 | ≤400 | 40 | 85.5 |
Middle steel Two Nylon |
| SHS-660X100 | 660*100 | ≤500 | 20 | 106 | |
| SHSN-508X75 | 508*75 | ≤400 | 16 | 42 | Nylon |
| SHSN-508X100 | 508*100 | ≤400 | 25 | 47 | |
| SHSN-660X100 | 660*100 | ≤500 | 40 | 85 | |
| SHSN-822X110 | 822*110 | ≤630 | 60 | 100 | |
| SHSN-916X110 | 916*110 | ≤800 | 80 | 140 | |
| SHSN-1040X125 | 1040*125 | ≤1000 | 110 | 210 | |
| SHSN-1160X150 | 1160*130/150 | ≤1250 | 120 | 245 | |
| SHSNN-255X110 | 255*110 | ≤630 | 50 | 120 | |
| SHSNN-325X150 | 325*150 | ≤1520 | 120 | 165 |
