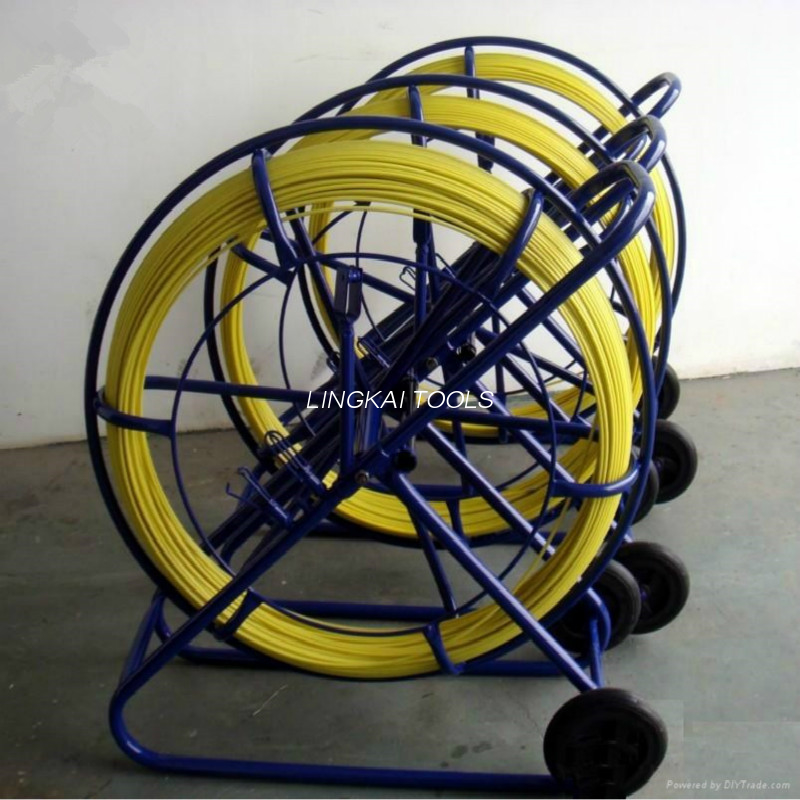

Traceable Copper Head Fiberglass Conduit Rodder Durable With High Tensile

Fiberglass Traceable Rodder with High Tensile in Optical Cable Laying

How to Operate Traceable Rodder?

• Energize the entire length of traceable rod by connecting one lead from the transmitter to the terminal & the other to earth.
• Push the rod into the duct. slip ring design allows simultaneous tracing while pushing rod into buried duct
• Follow signal using a pipe cable locating receiver at corresponding frequency at which rod is energized to determine route of buried duct.
• To energize the “TIP” to the rod for blockage detection, connect both the leads i.e the black lead from the transmitter to the 1st terminal of the marak and the red lead to 2nd terminal available on the mtrak.
• Locate the sonde tip of the traceable rodder using the pipe cable locating receiver

Firstly, prepare a duct rodder and pull out the copper head;

Secondly, replace the drawing head with medial parts for connecting rodder and sonde.

Thirdly, prepare a sonde and connecting the end to medial parts

Fourthly, you have got a traceable duct rodder, and then ready to trace duct or conduit

Fifthly, you can make the rodder pass through duct or conduit;

Finally, with the accessory equipment of Signal transmitter and receiver you can find out the problems;

Specifications of Traceable Duct Rodder:

Features of Traceable Duct Rodder:

• Copper or steel wire for excellent conductive performance;
• PP sheath supplies excellent abrasion resistance performance and various colors;
• Fiberglass core rod is anti-bending;
• Galvanized or PVC coating frame for durable and corrosion and rust resistance;
• Hand-operated brake for easily pull, push and.

Applications of Traceable Duct Rodder:

• Find, follow and accurately map the duct route;
• Communication cable laying;
• Optical cable laying;
• Pipeline washing and cleaning.
