Rated Load (KN): |
7-90 |
Conductor Diameter (mm): |
MAX TO ACSR42-45 |
Max. Opening (mm): |
14-48 Mm |
Weight (kg): |
Max 20 Kgs |
Come Along Clamps are specially used for adjusting the sag of conductors in overhead transmission line, to temporarily hold conductors during conductor stringing operation.

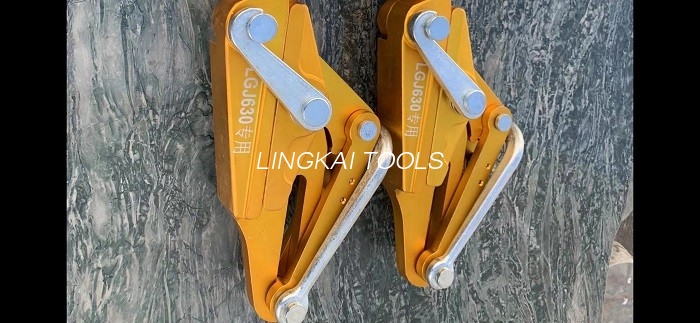

Aluminum Alloy Conductor COME ALONG CLAMPS
| Item No. | Model | Rated Load (KN) | Conductor Diameter (mm) | Max. Opening (mm) | Weight (kg) |
| 13221 | SKL-7 | 7 | ACSR7-12 | 14 | 1.0 |
| 13222 | SKL-15 | 15 | ACSR13-16 | 18 | 1.4 |
| 13223 | SKL-25 | 25 | ACSR17-23 | 24 | 3.0 |
| 13224 | SKL-40 | 40 | ACSR23-29 | 32 | 4.4 |
| 13225 | SKL-50 | 50 | ACSR30-35 | 36 | 6.6 |
| 13227 | SKL-60 | 60 | ACSR36-38 | 40 | 9.2 |
| 13228 | SKL-70 | 70 | ACSR38-40 | 42 | 14 |
| 13229 | SKL-80 | 80 | ACSR40-42 | 45 | 18 |
| 13229A | SKL-80A | 90 | ACSR42-45 | 48 | 20 |
Application: Used to pull conductors in power and communication line construction field, and to maintain temporary tension until it can be permanently terminated.
Feature: The come along clamp are forged from high strength aluminum alloy, light weight and high strength. All the jaws of clamps are specially designed for ACSR conductors. Special size jaws can be ordered as per the customer’s requirement.
We have exported our clamps to more than 50 countries in the world. We can provide special clamps as per customer's requirement of different size.
Alloy Steel Automatic Come Along Clamp for conductors
| Item No. | Model |
Work Load (KN) |
Breaking Load (KN) |
Size | Data (mm) | Inter - changeable Jaw | Conductor Size Range (mm) | Weight (kg) |
| 13246A | SK-60 | 60 | 180 | A | 115 | conductor diameter 23-35 mm | 23-26 | 19 |
| B | 340 | 26-29 | ||||||
| C | 590 | 29-32 | ||||||
| D | 23-35 | 32-35 |
Application: It is used to hold aluminum conductor in overhead transmission line stringing operation. and to maintain temporary tension until it can be permanently terminated.
Feature: The whole body is made of High strength Alloy Steel with special jaw length of 270mm, equipped with difference size of interchangeable aluminum jaws, light weight and good for protecting the surface of conductors.
