Model: |
ST12X2 |
Rated Load: |
12x2kn |
Hook Slot Length: |
120mm |
Weight: |
13kg |
After Sales: |
Availavle |
Name: |
2 Bundle Conductor Lifting Tools |

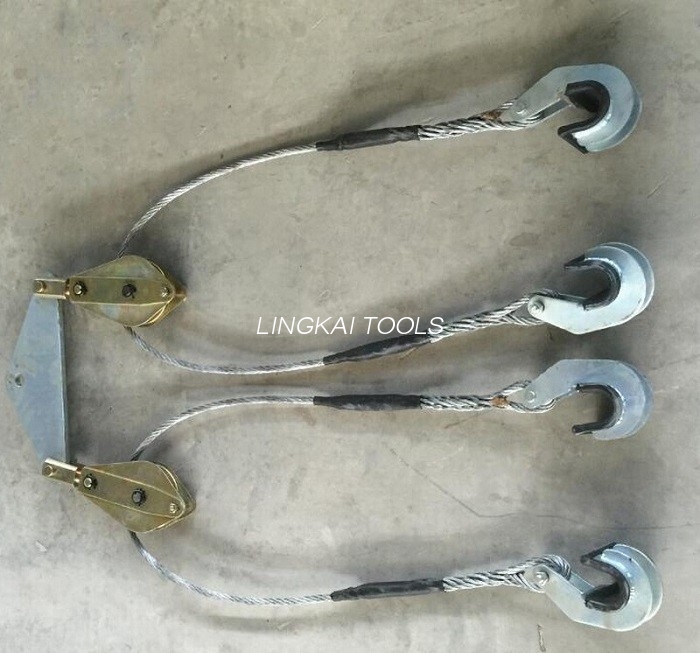

Twin Two Bundled Conductor Lifter Lifting Tools Rated Load 2x12kN
Conductor lifter with Rubber
| No. | Rated Load (kN) | Tray length(mm) | Weight(kg) |
| ST8 | 8 | 60 | 0.9 |
| ST12 | 12 | 120 | 2.5 |
| ST25 | 25 | 160 | 7 |
| ST40 | 40 | 260 | 10.5 |
Quick Information:
1. Transmission line lifting tools
2. No ST12X2 two bundle conductor lifting tools
3. rated load: 2X12kn
4. Tray length 120mm
5. weight 13kg
6. Applicaiton: two bundle conductors
Advantages:
1.Nylon backing for effective protection of the wire sheath
2.Use twist-free wire rope for better bearing and no bending
3.The claws are made of alloy steel with high strength and no deformation
Multi Conductor lifting
| No. | Rated Load (kN) | Tray length(mm) | Weight(kg) | Application |
| ST12X2 | 2X12 | 120 | 13 | Two bundled Conductors |
| ST25X2 | 2X25 | 160 | 25 | Two bundled Conductors |
| ST40X2 | 2X40 | 250 | 40 | Two bundled Conductors |
| ST12X3 | 3X12 | 120 | 21 | Three bundled Conductors |
| ST25X3 | 3X25 | 160 | 35 | Three bundled Conductors |
| ST40X3 | 3X40 | 250 | 60 | Three bundled Conductors |
| ST12X4 | 4X12 | 120 | 35 | Four bundled Conductors |
| ST25X4 | 4X25 | 160 | 60 | Four bundled Conductors |
| ST40X4 | 4X40 | 250 | 90 | Four bundled Conductors |
| ST25X6 | 6X25 | 160 | 70 | Six bundled Conductors |
| ST40X6 | 6X40 | 250 | 110 | Six bundled Conductors |
| ST25X8 | 8X25 | 160 | 120 | Eight bundled Conductors |
| ST40X8 | 8X40 | 250 | 160 | Eight bundled Conductors |
