Model: |
JJM 8Q |
Apply: |
Wire Rope Pulling |
Name: |
Cable Drum Winch |
Type: |
8 T Gas Winch |
Engine Power: |
13HP Yamaha |
Site: |
Line Construciton |

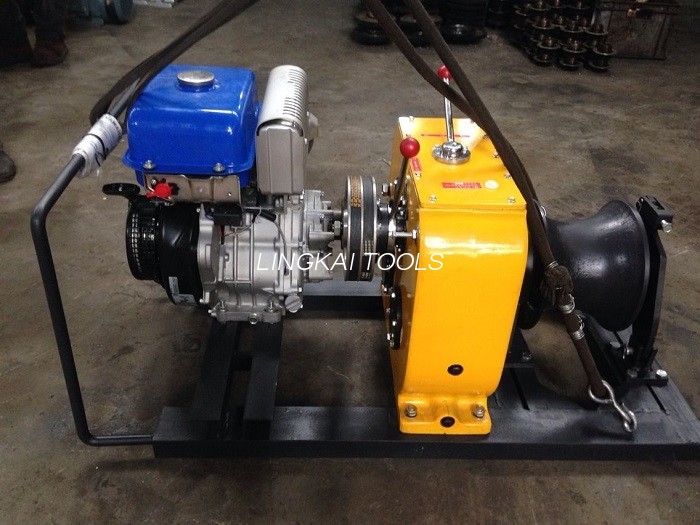

8 Ton Cable Drum Pulling Winch With Yamaha Gasoline Engine for Wire Rope Hoisting
Application
It is used for tower erection,pole setting,stringing wire in electrical power line construction.Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Technical Data of 8 Ton Cable Drum Pulling Winch With Yamaha Gasoline Engine
| Model Type | Engine Power | Gear | Pulling Speed(m/min) | Pulling Force(KN) |
| JJM-8Q | 13HP Yamaha | Slow | 4 | 80 |
| Fast | 8 | 4 | ||
| Reverse | 3.8 | no lifting |
