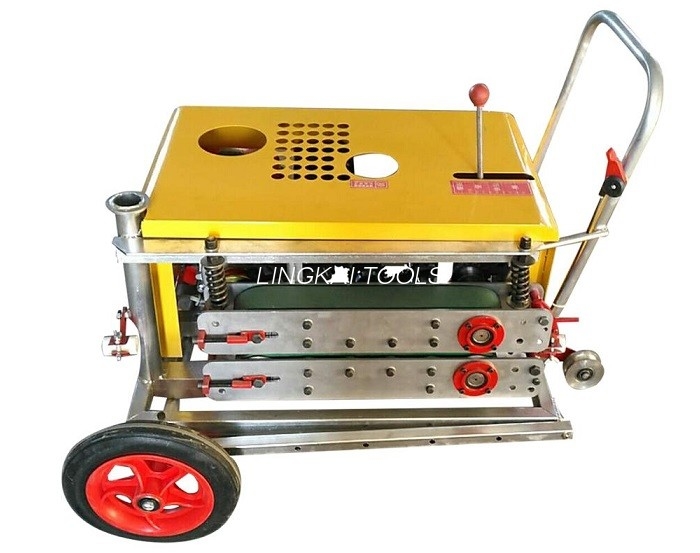

Yellow Cable Hauling Machine For Cable Puller , Efficient Wire Laying Machine

Fiber Optic Cable Tractors For Cable Puller,Cable Hauling Machine

Yellow Cable Hauling Machine For Cable Puller , Efficient Cable Belt Conveyor

High Quality Convenient And Efficient Cable Belt Conveyor:is an electric machine for laying power cable (or communication cable).It can be used with cable tractor, hoist and other cable laying machine, which can save man power and material greatly and reduce construction cost effectively.

Specification

Optical cable traction engine for pulling optical cable ,fiberglass cable, fiberglass duct rod, duct rodder, replace workerman for pulling, the force is 200kg, so reduce the member.

1. The machine is mainly composed of engine, gearbox and transmission device. The clamping of the transmission device is used up and down to make the cable effective. Tractors with gasoline engine as power source, the transmission drive shaft gear chain, the chain bite transmission device, drive transmission belt, realize the straight line, the machine is also equipped with support bar to support machine in the operation of the cable force, keep the machine fixed transmission cables.
2. The machine is easy to operate, and the four operating stops are (push, pull, idle, and slow) to select the desired position. Before changing gear, you must adjust the throttle to the idle state, and then control the accelerator on your hand when you hang it. Turn off the flame switch after use.

Fiber Optic Cable Tractors widely used,can replace the artificial pull, the speed is quick, does not injure the cable.

Please click below picture to find the video about application method
