Model:
|
ZB
|
Name:
|
Anti-twist Running Board
|
||||
|
OPGW:
|
11-22 Mm Diameter
|
Weight:
|
2 X 12.5 Kg
|
Space:
|
2 M
|
Load:
|
20 KN
|

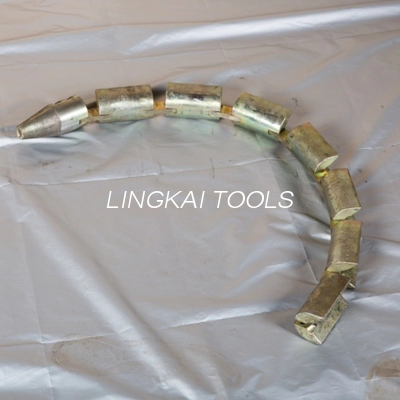

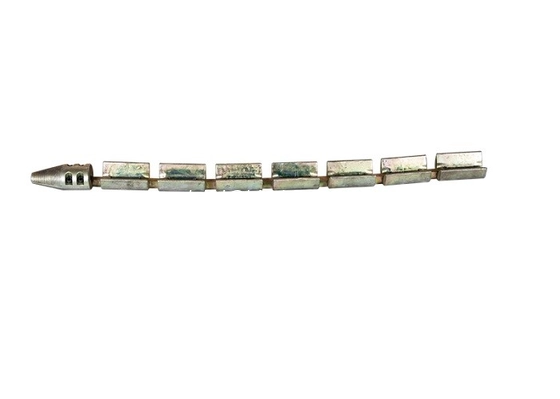

ZB Model Anti Twist Running Board Tools For 11-16mm OPGW Diameter
Anti Twist Running Board Introduction.
Our anti twist tension stringing tool comes with two running boards. It is applicable to the construction of optical power ground wire abbreviated as OPGW. The gap of anti twist running board is 2m. This product is directly screwed on the OPGW. It can pass through the sheave groove with the diameter of 660mm.
Quick Infomation
ZB Model Anti Twist Optical Fiber Cable Tools For 11 - 16 Mm OPGW Diameter
Model;ZBP-20,generally, two work together
Space:2m
Working torque:32Nm
Suited diameter of OPGW:11--16mm
Weight:2x12.5kg
|
Item No.
|
Model | Rated load (KN) | Anti-twisting torque force (N.m) | OPGW size range (mm) | Overall weight (kg) |
| 20118 | ZBP-20 | 20 | 32 | 11-16 | 2 X 12.5 |
Application
ZB Model Anti Twist Optical Fiber Cable Tools For 11 - 16 Mm OPGW Diameter
This running board is just for OPGW stringing.It is used for fiber optic cable stringing. The cable could be prevented spiraling by this tool. It is installed directly on the head of OPGW cable, with interval distance 2 meters for 2 pieces of devices.
Our Service:
High quality fasteners products with best price;
Many years excellent experience with pre-sale and after-sale service;
Strict quality control according to your requirement;
Professional packing team keep every pack safely;
Send you some free samples along with your cargo to share us quality;
Other Optical Fiber Cable Stringing Equipment
