Name: |
Traction Machine |
Feature: |
Self Moving |
Model: |
ZZC350 |
Maximum Creeping Angle(掳): |
31 |
Gasoline Engine: |
YK950/650W |
Horizontal Pull(N): |
350 |

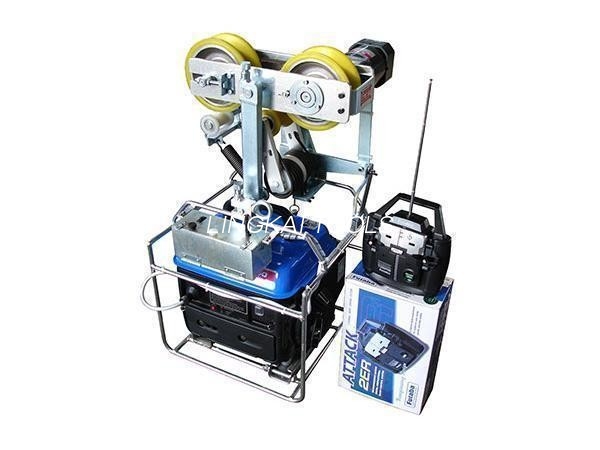

ZZC350 Self - Moving Traction Machine Optical Fiber Cable Stringing Tools
This ZZC350 type self-moving traction machine can be used to spread the optical power ground wire abbreviated as OPGW. Also, it is able to replace the old conductor.
Technical Parameters
| Item Number | 20121 |
| Diameter Range of Pulley (mm) | Φ9-26 |
| Maximum Angle of Climb (°) | 31 |
| Type of Gasoline Engine Generator | YK950/650W |
| Type of Driving Motor | 100YYJ140-3 (140W) |
| Remote Control Linear Distance (m) | 300-500 |
| Overall Dimension (mm) | 477× 488× 763 |
| Running Speed (m/min) | 17 |
| Horizontal Pulling Force (N) | 350 |
| Weight (kg) | 46.5 |
Item number:20121
Model:ZZC350
Use to spread OPGW,replace old conductor .
Essential technical parameter:Block passed diameter range(mm):φ9锝?phi;13
Maximum creeping angle(°):31
Gasoline Engine:YK950/650W
Driving dynamo type:100YYJ140-3:100YYJ140-3(140W)
Remote control linear distance(m):300~500
Outing Size(mm):422×480×758
Running speed (m/min):17
Horizontal pull(N):350
Weight(kg):46.5
Application: this ZZC350 traction machine is used to delivery guide rope and double pulley rollers from on esteel tower to another running on earth wire by self-driving system.
