Model: |
20105D |
Rated Load: |
25KN |
Length: |
1.4m |
Material: |
Galvanized Steel |
Name: |
Socket OPGW Grips |
Apply: |
7-22 Mm Diameter OPGW |

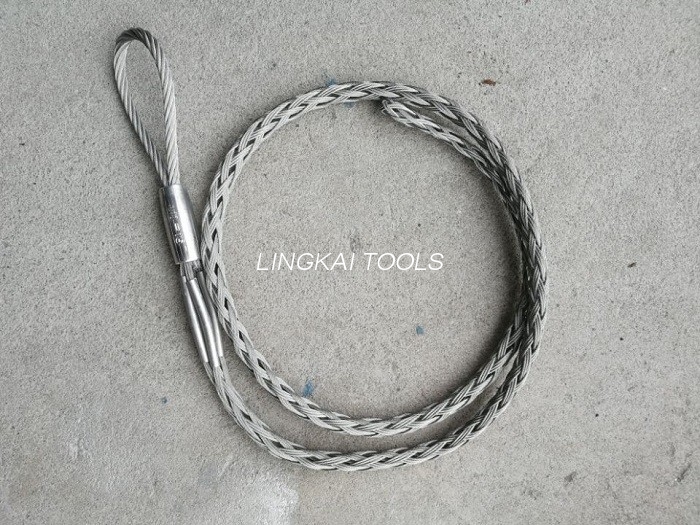

1.4M 25KN Socket OPGW Grips For 7-22 mm Diameter Optical Fiber Cable
1.4M 25KN Socket OPGW Grips For 7-22 mm Diameter Optical Fiber Cable
|
Item numbe |
(MM) Applicable Optical Cable Diameter |
(KN) Rated Load |
(M) Length |
| 20105A | Φ7-11 | 10 | 1.4 |
| 20105B | Φ11-15 | 15 | 1.4 |
| 20105C | Φ15-17 | 20 | 1.4 |
| 20105D | Φ17-22 | 25 | 1.4 |
OPGWADSS Mesh Sock Joints Configuration:Apply to ADSS or OPGW cable construction.
When the power construction lays out, it connects various steel-cored aluminum strands and insulated wires, ground wire, optical fiber, optical cable, cable, and can pass through various types of laying trolley, with light weight, large pulling load,
No wire loss, easy to use and other advantages, is the most ideal tool for power construction.
Quick information:
1. OPGW cable gripper
2. Donghuan Brand
3. leight weight, and highly strengh
4. Length can be customized
