Model:
|
SHD200x40
|
Conductor:
|
ACSR150 ~240
|
||||
|
Weight:
|
3.6kg
|
Rated Load:
|
15kN
|
Material:
|
Nylon
|
Type:
|
Clevis
|

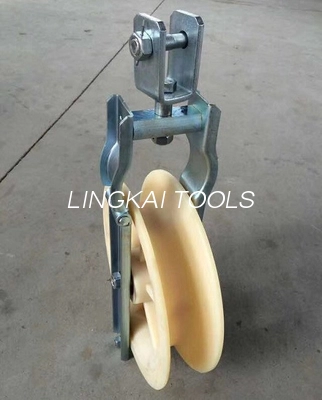

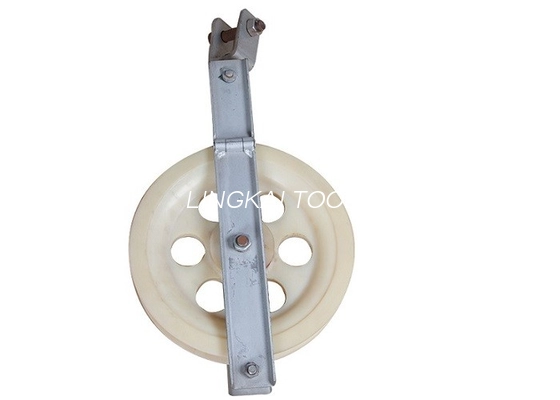

15KN Swive Eye Type Cable Pulling Pulley With Nylon Wheel For Stringing
Product: Single sheave stringing pulley block, stringing blocks.
It is used for releasing the aluminum wire, ACSR, insulated wire in pole and tower erection.The wheel groove can be through with clamp pipe, aluminum tube, connector etc..The material is MC nylon, and galvanzied steel side.Pulley pendant is combined plate and hook type. and pulley is very smooth, and strength.
Technical Parameters:15KN Swive Eye Type Cable Pulling Pulley With Nylon Wheel For Stringing
| Item Number | Model | Suitable Conductor | Rated Load (kg) | Weight (kg) | Remark |
| 10171 | SHD-120×30 | LGJ25~70 | 5 | 1.5 | Aluminum sheave |
| 10172 | SHD-160×40 | LGJ95~120 | 10 | 2.5 | |
| 10173 | SHD-200×40 | LGJ150~240 | 15 | 4 | |
| 10174 | SHD-200×60 | LGJ150~240 | 15 | 4.6 | |
| 10176 | SHD-250×60 | LGJ300~400 | 20 | 6 | |
| 10178 | SHD-320×60 | LGJ300~400 | 20 | 9.5 | |
| 10179 | SHD-400×80 | LGJ400~500 | 20 | 15 | |
| 10191 | SHDN-120×30 | LGJ25~70 | 5 | 1.5 | Nylon sheave |
| 10192 | SHDN-160×40 | LGJ95~120 | 10 | 2.5 | |
| 10193 | SHDN-200×40 | LGJ150~240 | 15 | 3.6 | |
| 10194 | SHDN-200×60 | LGJ150~240 | 15 | 4 | |
| 10196 | SHDN-250×60 | LGJ300~400 | 20 | 4.5 | |
| 10197 | SHDN-270×60 | LGJ300~400 | 20 | 5.6 | |
| 10198 | SHDN-320×60 | LGJ300~400 | 20 | 6.7 | |
| 10199 | SHDN-400×80 | LGJ400~500 | 20 | 13 |
Remarks:15KN Swive Eye Type Cable Pulling Pulley With Nylon Wheel For Stringing
All kinds of pulley blocks can be manufactured according to the customers's requirements.
If any interested,please feel free to contact with us for more information,and we will try our best to comply with your requirements.
Details pls check.
Factory price
We are the trading company with our own directly factory. So you can get high quality products with factory price. For big order and regular Customers, we give favorable discounts.
