Certification: |
ISO |
Item: |
Lifting Block |
Rated Load: |
15T |
Type: |
G,H,B |
Warranty: |
1year |
Material: |
Iron |

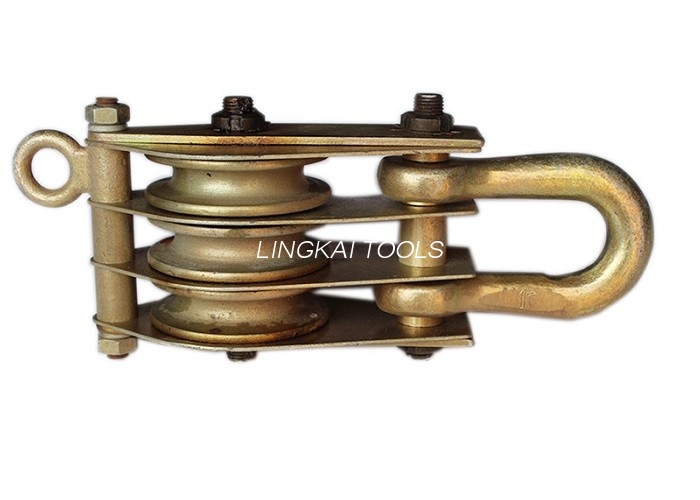

15T Heavy Duty Steel Snatch Hoisting Tackle For Overhead Line Construction
Application:
15T Heavy Duty Steel Snatch Hoisting Tackle For Overhead Line Construction
Hook type wire rope snatch pulley block is used for lifting and sagging operation in transmission line construction. It is used for pole and tower erection, line construction, equipment hoisting and other lifting applications.The sheave is made of high strength qualified steel, the sheave is mounted on ball bearings. The frame of pulley blocks is galvanized. All the blocks have been tested before ex-works.The single sheave pulley block can be designed as side open type and side closed type.
Steel Snatch Hoisting Tackle Date:
15T Heavy Duty Steel Snatch Hoisting Tackle For Overhead Line Construction
| Item Number | Model | Number of Sheave | Rated Load (kN) | Sheave Outer Diameter × Sheave Width (mm) |
Rope Diameter (mm) | Weight (kg) | Hoisting Point Type | ||
| 11181 | QH1-1K | 1 | 10 | Φ100×31 | Φ7.7 | 2.8 | G | H | |
| 11182 | QH1-2 | 2 | 10 | Φ80×28 | Φ6 | 2.8 | G | H | |
| 11183 | QH1-3 | 3 | 10 | Φ80×27 | Φ6 | 4.1 | G | H | |
| 11191 | QH2-1K | 1 | 20 | Φ120×35 | Φ9.3 | 4.2 | G | H | B |
| 11192 | QH2-2 | 2 | 20 | Φ100×31 | Φ7.7 | 4.2 | G | H | |
| 11193 | QH2-3 | 3 | 20 | Φ100×31 | Φ7.7 | 6 | G | H | |
| 11201 | QH3-1K | 1 | 30 | Φ150×39 | Φ11 | 7 | G | H | B |
| 11202 | QH3-2 | 2 | 30 | Φ120×35 | Φ9.3 | 5.3 | G | H | |
| 11203 | QH3-3 | 3 | 30 | Φ100×31 | Φ7.7 | 6.5 | G | H | |
| 11211 | QH5-1K | 1 | 50 | Φ166×40 | Φ13 | 9.6 | G | H | B |
| 11212 | QH5-2 | 2 | 50 | Φ150×39 | Φ11 | 10.8 | G | H | |
| 11213 | QH5-3 | 3 | 50 | Φ120×35 | Φ9.3 | 7.7 | G | H | |
| 11221 | QH8-1K | 1 | 80 | Φ205×50 | Φ17 | 12.5 | G | H | B |
| 11222 | QH8-2 | 2 | 80 | Φ166×40 | Φ13 | 17 | G | H | |
| 11223 | QH8-3 | 3 | 80 | Φ150×39 | Φ11 | 17.5 | G | H | |
| 11231 | QH10-1K | 1 | 100 | Φ246×60 | Φ18.5 | 25 | G | B | |
| 11232 | QH10-2 | 2 | 100 | Φ166×40 | Φ13 | 18.5 | H | ||
| 11233 | QH10-3 | 3 | 100 | Φ150×39 | Φ11 | 20 | H | ||
| 11241 | QH15-1K | 1 | 150 | Φ280×65 | Φ21.5 | 34 | B | ||
| 11242 | QH15-2 | 2 | 150 | Φ205×50 | Φ17 | 22 | H | ||
| 11243 | QH15-3 | 3 | 150 | Φ166×40 | Φ13 | 26 | H | ||
| 11244 | QH15-4 | 4 | 150 | Φ150×39 | Φ11 | 30 | H | ||
| 11248 | QH20-4 | 4 | 200 | Φ205×50 | Φ17 | 50 | H | ||
Other brother blocks pls refer to the photo or contact us freely.
