Model: |
EP430 |
Force: |
12T |
Crimping Form: |
Hexagon Crimping |
Weight: |
6.4 Kg |
Stroke: |
32 Mm |
Crimping Range: |
16-300 銕?/div> |

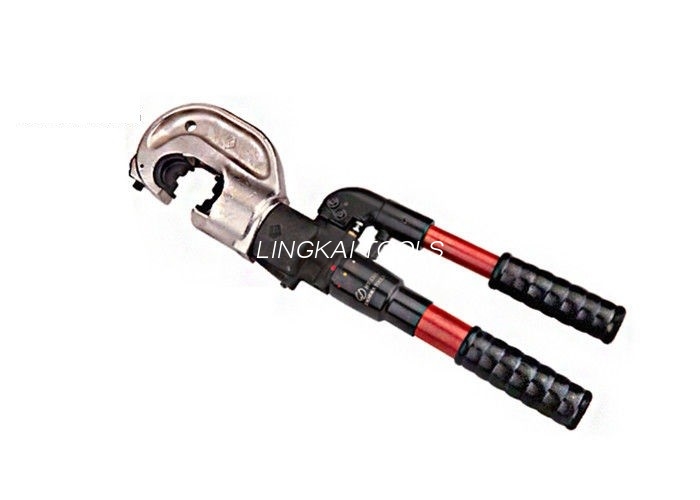

Manual Hydraulic Cable Lug Crimping Tool EP-430 12T Crimping Up To 400銕?/span>
Features
Manual hydraulic cable lug crimping tool
1. The compression pliers are designed for hydraulic crimping on power cable and wire. The crimped conductor is tested in high conductivity and close contact so that it's uneasy to break out and turn hot .
2. Open cut design for convenient operation.
3. Dies are quickly put on tube by double speed unit. Then compression force lift and automatically change to low speed. The operation finishes with energy saving and time shorten.
4. The head could be rotated 180° freely for narrow space working.
5. Fitted with safety valve, when pressure reaches to limited max. Value pressure release automatically to prevent over pressure.
6. Standard die assembling 50,70,95,120,150,185,240,300,400mm².
7. Fiberglass insulated handles to prevent accidental electrichitting.
8. Packing case is made form robust integarl plastic box.
Technical Data Manual Hydraulic Cable Lug Crimping Tool EP-430 12T Crimping Up To 400銕?/strong>
Model |
Crimping force(T) |
Crimping range(mm²) |
Stroke (mm) |
Oil capacity (cc) |
Weight(kg) |
Standard dies(mm) |
Packaging Size(mm) |
| EP-400 | 12 | 16-300 | 30 | 145 | 6.6 | 50,70,95,120,150,185,240,300 | 755×130×230 |
| EP-430 | 12 | 16-400 | 32 | 145 | 6.4 | 50,70,95,120,150,185,240,300,400 | 755×130×230 |
| EP-510 | 12 | 16-400 | 38 | 200 | 7.2 | 50,70,95,120,150,185,240,300,400 | 755×130×23 |
Characteristics
Manual Hydraulic Cable Lug Crimping Tool EP-430 12T Crimping Up To 400銕?/p>
1. Compression mould can be replaced,easy operation.
2. Accessories:50,70,95,120,150,185,240,300,400mm2.
3. Press tools is suitable for DIN,AWG,JIS
4. There is a safety protection device of "Kacha"voice when it reaches to the high voltage or low voltage.
5. It can be used in working in the higher levels by one person.It saves time and labor.
6. Pump is connected to the tools,the head of die-casting can be turned 180 degree.
