Item: |
Stringing Pulley Block |
Apply: |
Crossarm-mounted Stringing |
Materail: |
Aluminum |
Load: |
0.5T |
Weight: |
1.9kg |
Warranty: |
One Year |
Universal Crossarm Mounted Pulley/ Single Sheave Cable Hanging Pulleys
Use and Characteristics
20KN Universal Crossarm Mounted Pulley/ Single Sheave Cable Hanging Pulleys
Suit for middle and small section wire expand.About to hang pay-off pulley, also can be face to pay-off pulley.
1) sheave:Nylon/ Al;
2) Material quality:stainless
3) Rated load:0.5Ton,1Ton;2Ton
Technical specification below for your reference:
20KN Universal Crossarm Mounted Pulley/ Single Sheave Cable Hanging Pulleys
| Item number | Model | Outside diameter ×width (mm) | Rated load (kN) | Weight (kg) | Remark |
| 10261 | SHC-80×50 | Φ80×50 | 5 | 1.9 | Aluminum sheave |
| 10262 | SHC-120×30 | Φ120×30 | 5 | 2.1 | |
| 10263 | SHC-160×40 | Φ160×40 | 10 | 2.5 | |
| 10264 | SHC-120×58 | Φ120×58 | 20 | 3.5 | |
| 10271 | SHCN-80×50 | Φ80×50 | 5 | 1.4 | Nylon sheave |
| 10272 | SHCN-120×30 | Φ120×30 | 5 | 1.6 | |
| 10273 | SHCN-160×40 | Φ160×40 | 10 | 2 | |
| 10274 | SHCN-120×58 | Φ120×58 | 20 | 2.5 |
Application:20KN Universal Crossarm Mounted Pulley/ Single Sheave Cable Hanging Pulleys
Not only used to be as hang model pulley but also as skyward model stringing pulley.

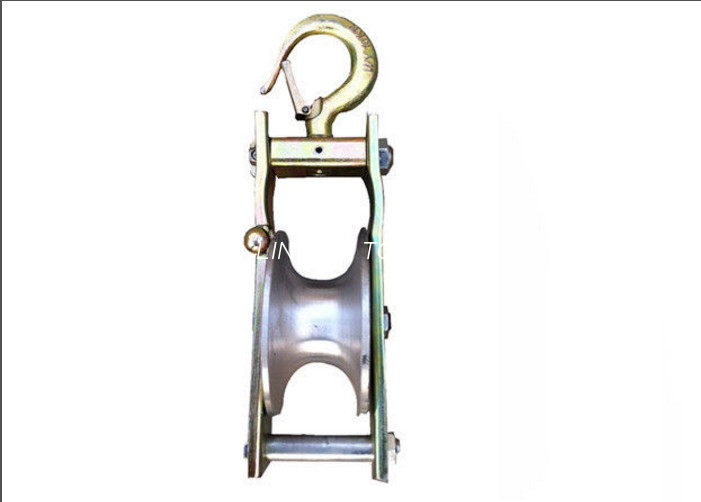

Detailed Show:20KN Universal Crossarm Mounted Pulley/ Single Sheave Cable Hanging Pulleys.
FAQ:
1. Are you a manufacturer or a trading company?
We are a professional fasteners manufacturer with rich experience. And in order to do business with your company well, we established a branch to open the foreign trade fields.
2. Do you offer free samples?
We can provide free samples below 10 USD and you should pay the freight. After you place an order, we will give back the freight.
3. Do you accept our design on products or boxes?
Yes. We accept customized design and we have a professional design team who can design products based on your requirements.
4. How long is your delivery time?
Generally 7-10 days if the goods are in stock or 15-30 days not in stock.In a word, according to the order quantity.
