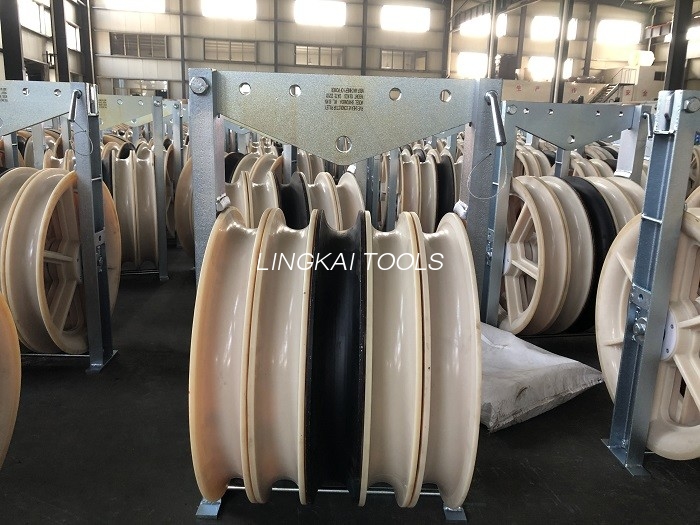

40KN MC Nylon Stringing Pulleys Bundled Conductor Pulley For Transmission Line

Overhead Stringing Blocks are used for overhead transmisson line conductor or OPGW stringing. We have produced sheave rollers with nylon or aluminum alloy, both kinds of rollers could be lined with neoprene, to protect some special kind of conductors.

Note:

1. Hook fitting, round eye fitting, and clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request.

The data in the model means the outer diameter of sheave X width of sheave (mm).

2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.

Three sheaves Stringing Blocks

Application: It is suitable to string two or three stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in aluminum alloy or high strength nylon. The big size 660mm, 822mm, 916mm, 1040mm nylon sheave can be lined with neoprene.

Note:

1. Clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request. The data in the model means the outer diameter of sheave X width of sheave (mm).

2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.
