Punching: |
CH 60-CH70 |
Cutter: |
CWC 150,CWC200 |
Bending: |
CB150D CB200A |
Electrical Pump: |
ZCB6-5-AB |
Dies: |
Be Customized Or Standard Batch |
Name: |
Multi-function Bus Bar |

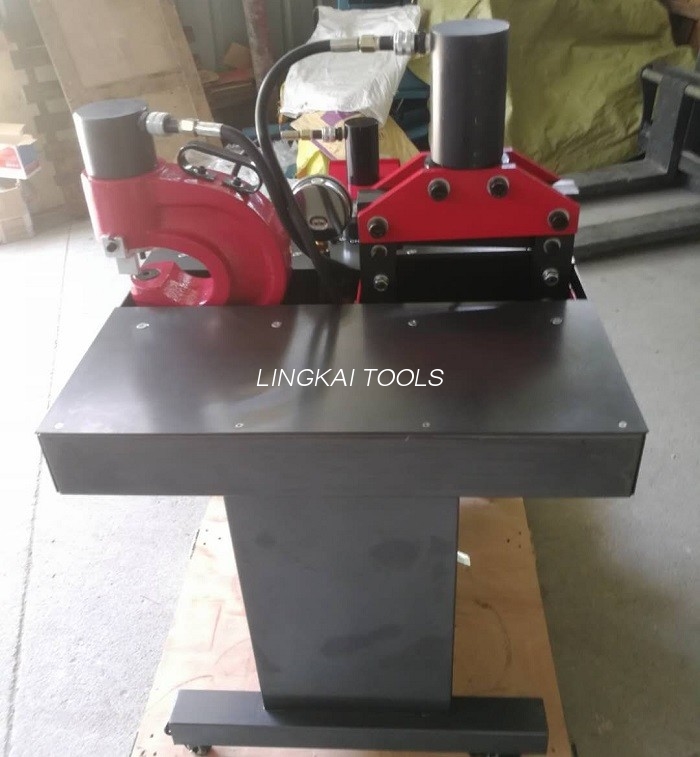

70Mpa Hydraulic Busbar Processing Machine for Punching , Cutting and Bending EPCB-301
EPCB-301 Multi Function Hydraulic Bus bar Processor Machine for Cutting,Punching and Bending
Model EPCB-301 sets:
Hydraulic punching device:CH60,CH70, 300KN and 350KN had die 10.5mm,13.8mm,17mm,20.5mm
Hydarulic bus-bar bender: CB150D,CB200A, it has Cu/Al plate 150*10mm, and 200*12mm
Hydraulic copper aluminum bus-bar cutter, it has CWC150,CWC200, with 200KN and 300KN cutting force, Cu/Al 150*10mm, and 200*12mm
Hydraulic electrical pump: ZCB6-5-AB, 750KW out put, 70Mpa.
| Item number | 06232 | 06231A | 06231 |
| Model | EPCB-301 | EPCB-401A | EPCB-401 |
| Function |
with three functions,cutting, punching and bending |
punching, bending and crimping |
with Four functions,cutting, punching and bending(horizontal and erective) |
|
Dimension of work table |
approx.690x690x730mm | approx.690x690x730mm | approx.690x690x730mm |
|
Voltage single phase |
220V50HZ | 220V50HZ | 220V50HZ |
|
Rating oil pressure |
700kg/cm2 | 700kg/cm2 | 700kg/cm 2 |
| Bending force | 170KN/200KN | 170KN/200KN | 270KN |
|
Bending range |
150x10mm max/200x12mm max | 150x10mm max/200x12mm max | 125x12.5mm max |
| Cutting force | 200KN/300KN | 200KN/300KN | 200KN/300KN |
| Cutting rang | 150x10mm max/200x12mm max | 150x10mm max/200x12mm max | 150x10mm max/200x12mm max |
| Punching force | 300KN/350KN | 300KN/350KN | 300KN/350KN |
|
Distance from hole to sheet side |
95x110mm max | 95x110mm max | 95x110mm |
| Punch rang |
φ10.5mmΦ13.8mm φ17mmΦ20.5mm |
φ10.5mmΦ13.8mm φ17mmΦ20.5mm |
3/8"(Φ10.5mm),1/2"(φ13.8mm), 5/8"(φ17mm),3/4"(φ20.5mm) |
| Package | wooden case | wooden case | wooden case |
Multi-function Busbar Processing Machine
This machine is with reference to foreign advanced products ,combined with domestic practical
situation , to provide the efficiency and guarantee of safety requirement and the design of form a
complete set of equipment .Most suitable for making large electric cabinet and transmission and distribution construction project fields use .High flexibility , small volume , big power , high production capacity and high work efficiency .Low noise ,harmless processing . Finishing product is beautiful and won't cause pollution to the environment .
