Model: |
Skl-40 |
Name: |
Conductor Gripper |
Apply For: |
300-400 LGJ |
Weight: |
4.0kg |
Max Open: |
32mm |
Type: |
Come Along Clamp |

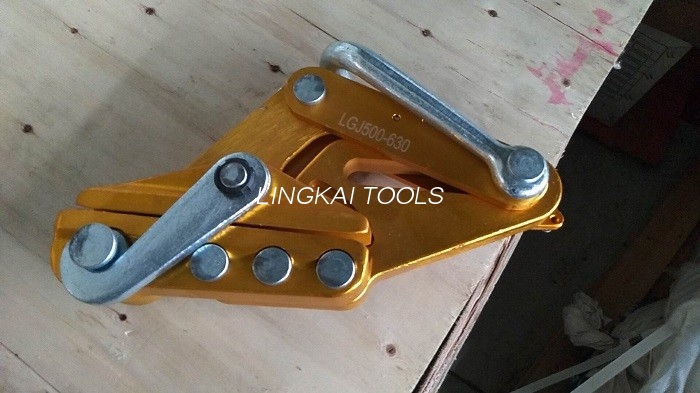

SKL Model 40kn 300-400 sqmm Aluminum Alloy Grip Come Along Clamp for ACSR AAAC
Aluminum Alloy Conductor Gripper Products
|
Item number |
Model |
(KN) Rated Load |
Applicable Conductor |
(MM) Max Open |
(KG) Weight |
| 13221 | SKL-7 | 7 | LGJ25-70 | 14 | 1.0 |
| 13222 | SKL-15 | 15 | LGJ95-120 | 18 | 1.4 |
| 13223 | SKL-25 | 25 | LGJ150-240 | 24 | 3.0 |
| 13224 | SKL-40 | 40 | LGJ300-400 | 32 | 4.0 |
| 13225A | SKL-50C | 50 | LGJ500-630 | 36 | 6.6 |
| 13224A | SKL-40A | 40 | LGJ400 | 32 | 4.3 |
| 13225 | SKL-50A | 50 | LGJ500 | 34 | 7.0 |
| 13226 | SKL-50B | 50 | LGJ630 | 36 | 7.3 |
| 13227 | SKL-60 | 60 | LGJ720 | 38 | 9.2 |
| 13228 | SKL-70 | 70 | LGJ900 | 42 | 14.0 |
| 13229 | SKL-80 | 80 | LGJ1000 | 45 | 18.0 |
| 13229A | SKL-80A | 80 | LGJ1120 | 48 | 18.0 |
Configuration: Apply to adjusting the sag and tensioning the conductor wire in power lines construction.
Feature: product is forged of high strength aluminum alloy with small size and light weight
Quick Information:
1) Aluminum alloy conductor gripper
2) two types, one is with hook, pls find the photos
3) Apply for LGJ300-400 conductor
4) Max open 32mm
