NAME: |
ANTI LIFTING AUTOMATIC PULLEY |
TYPE: |
STRINGING PULLEY |
SHEAVE: |
MC NYLON, STEEL ,ALUMINUM |
RATED LOAD: |
10~40KN |
BREAK FORCE: |
30~120KN |
APPLICABLE: |
ACSR400~720 |

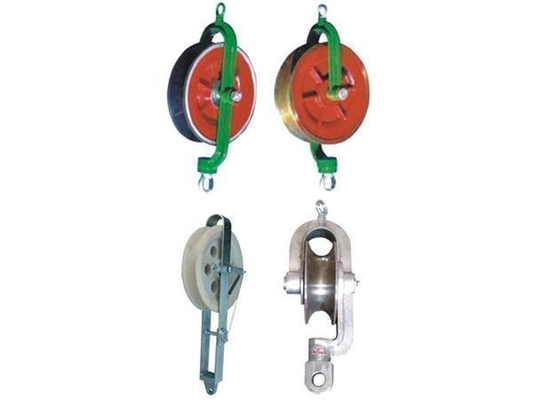

Anti Lifting Antomatic Release Pulley Hold Down Stringing Pulley Blocks
Product Table
Anti Lifting Antomatic Release Pulley Hold Down Stringing Pulley Blocks
| Item Number |
Scope of Application |
Rated Load ( kN ) |
Weight (kg) |
Remark | Outside diameter of sheave (mm) |
| 10241 | ≤LGJ400 | 10 | 13 | Aluminum coated glue | Φ308*Φ204*75 |
| 10242 | ≤GJ120 | 10 | 20 | Steel sheave | Φ308*Φ204*75 |
| 10243 | ≤LGJ720 | 25 | 16 | MC nylon | Φ400*Φ300*80 |
| 10244A | ≤Φ28 | 40 | 55 | Steel sheave | Φ308*Φ208*110 |
| 10244C | ≤LGJ720 | 34 | MC nylon sheave | Φ308*Φ208*110 |
Application: the anti lifting antomatic release pulley, it is used to press down earth wires or conductors in condutor stringing. the sheave is installed on balll bearings. The frame is made of highly quality galvanzied steel. The pulley is equipped with spring release system, can be released from the cable automatically.
Also the sheave can be made of MC nylon sheave or steel ,or aluminum sheave. If you have some technical doubts, pls freely ask us. we will recommend you the best suitable item.
