Name:
|
Handle Hoist
|
Type:
|
Chain Type
|
||||
|
Rated Load:
|
10kn
|
Lifting Height:
|
1.5m
|
Net Weight:
|
11.5kg
|
Weight Of 1m Chian:
|
1.4kg
|

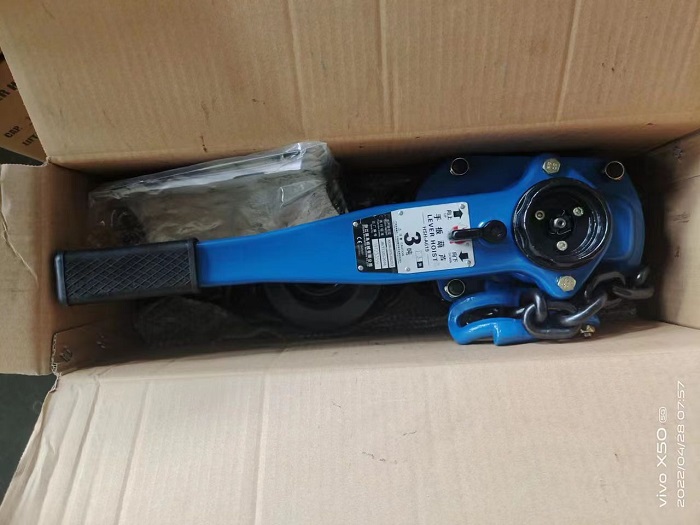

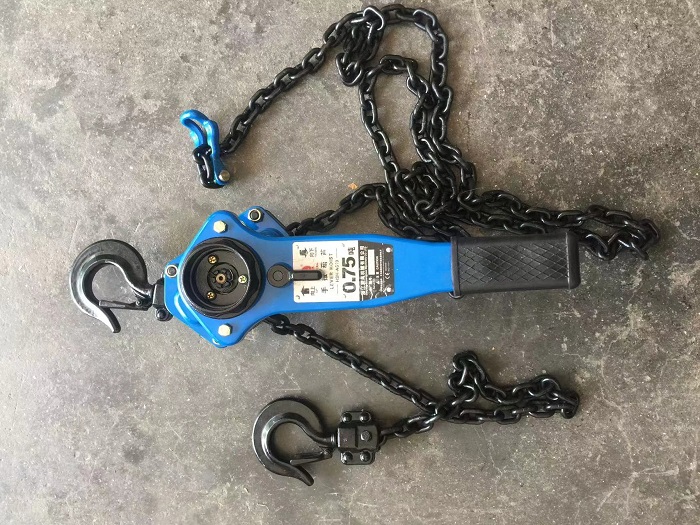

Ce Standard Electrical Cable Pulling Tools 10KN Chain Type Handle Hoist in Line Construction
Chain Type Handle Hoist Products:
|
Item number |
14201 | 14211 | 14215 | 14221 | 14231 | 14241 | 14245 | |
|
Rated load kn |
5 | 7.5 | 10 | 15 | 30 | 60 | 90 | |
|
Minimum distance between hooks (mm) |
260 | 320 | 380 | 380 | 480 | 620 | 700 | |
|
Standard lifting height (m) |
1.5 | |||||||
|
Number of lines of lifting chain(row) |
1 | 1 | 1 | 1 | 1 | 2 | 3 | |
|
Weight (kg) |
4.2 | 7.5 | 11.5 | 11.5 | 21 | 31.5 | 47 | |
|
Item No. |
3m Length of chain |
14202 | 14212 | 14216 | 14222 | 14232 | 14242 | 14246 |
|
5m Length of chain |
14204 | 14214 | 14218 | 14224 | 14234 | 14244 | 14248 | |
|
weight of 1m chain (kg) |
0.52 | 0.8 | 1.4 | 1.4 | 2.2 | 4.4 | 6.6 | |
Hand Wrenching Chain Tackle Block Configuration:
Apply to lifting machine parts,tightening steel stranded wire and aluminum stranded wire,etc. in line construction.
Quick Information:
1. Transmission line construction tightening tools, lifting tools for machine part.
2. Donghuan Brand
3. Rated load 1T
4. Minnimum distance between hooks: 380mm
5. Standard lifting height:1/5m
6. Tightening steel stranded wire and aluminum stranded wire in line construction/
