Production Name: |
916mm Stringing Block |
Function: |
String Wire |
Type: |
Pulley Block |
Material: |
Nylon And Alloy, Nylon And Alloy |
Feature: |
Arge Diameter Wheels |
Made: |
Zhejiang ,ningbo |

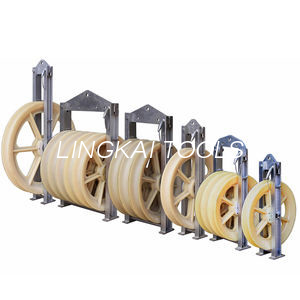

916mm Large Diameter Wheels Sheaves Bundled Wire Conductor Pulley Stringing Block
916mm Large Diameter Wheels Stringing Block
Our 916mm Large Diameter Stringing Block has the maximum suitable conductor LGJ720. In detail, the aluminum of this conducting wire can possess the largest cross section of up to 720 square millimeters. The dimension of block (outside diameter*root diameter*sheave width) is Φ916× Φ 800× 110 (mm).
1. Maximum suitable conductor ACSR720.
2. Sheave dimension ( outside diameter× root diameter × sheave width) Φ916×Φ800×110(mm).
3. The middle sheave can be customized as cast steel sheave
916mm Main Specifications
| Item Number | Model | Number of Sheave | Rated Load (KN) | Weight (kg) | Sheave Feature |
| 10151 | SHDN916 | 1 | 50 | 51 | MC nylon sheave |
| 10152 | SHSQN916 | 3 | 75 | 120 | |
| 10153 | SHWQN916 | 5 | 150 | 200 | |
| 10151 | SHDN916-125 | 1 | 50 | 60 |
