Fiberglass Insulated Light Ladders For Overhead Line Tower Installation

High quality Fiberglass Insulated Light Ladders For Overhead Line Tower Installation from China, China's leading tower safety equipment product, with strict quality control tower climbing kit factories, producing high quality tower climbing kit products.

Send Inquiry

Product Description

Name:	Fiberglass Insulated Light Ladders	Model:	LGS
Max Loading:	150	Apply:	Tower Installaiton	Type:	Ladder	Certificaiton:	ISO CE

Fiberglass Insulated Light Ladders For Overhead Line Tower Installation

Light Aluminium Alloy Ladders is easy for extending and sliding back and convenient for carrying. It is safe for use with high strength.

Light Aluminium Alloy Ladders

Itemnumber	Model	Elongation(m)	Shrinklength(m)	Weight(kg)	Maxloading
22245A	LGS-25	2500		5	150
22245B	LGS-30	3000		5.5
22245C	LGS-35	3500		6.1
22245D	LGS-40	4000		6.6
22246A	LGE-40	4000	2700	13
22246B	LGE-50	5000	3700	15
22246C	LGE-60	6000	3900	18
22246D	LGE-70	7000	4200	20

Products Features : It is easy for extending and sliding back and convenient for carrying. It is safe for use with high strength.

Withstand voltage level: Under 35KV, please choose aluminum alloy pedal;

Under 220KV, please choose fiberglass pedal.

Specifically designed for climbing poles of circular or polygonal section. Standard lengths can be assembled to create the total length required. The ladder is made of light aluminium alloy, provided with anti-slippery rungs and with special tracks for the anti-fall device.

The ladder can be composed by using the following elements :
1. Standard section
2. Self-supporting base for fixing the ladder to the pole without additional ground support or alternatively :
(1) Self-supporting base section for fixing the ladder to the pole without additional ground support
(2)Terminal section, complete with anti-fall device, to be connected to any of the rungs of the last standard section, in order to adjust the final ladder length

(3)Working platform applicable to the ladder at the required height.

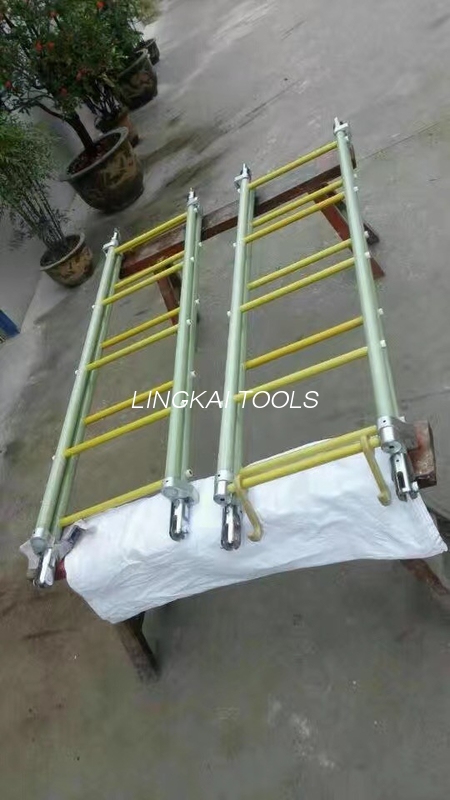

Fiberglass Insulated Light Ladders For Overhead Line Tower Installation 1
