Model: |
JJM-5SQ |
Brand: |
Donghuan |
Approved: |
ISO |
Name: |
Cable Drum Winch |
After Service: |
Available |
Rated Load: |
5T |

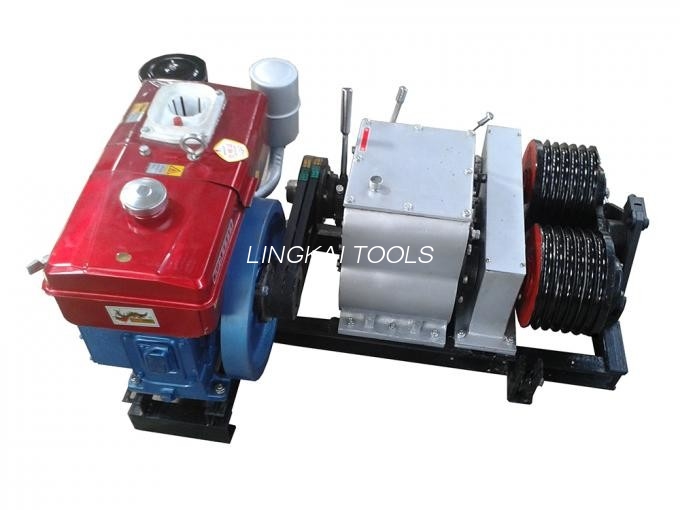

5 Ton Gasoline Powered Winch Cable Drum Winch Cable Pulling Winch with Two Drum
Application
5 Ton Gasoline Powered Winch Double Drum Winch is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Technical Data
| Model | JJM-5SQ | |||||
| Engine | Honda/Yamaha gasoline engine | |||||
| Power | 13Hp ,3600rmp | |||||
| Suitable Wire Rope(mm) | 15 | |||||
| Bottom diameter of Groove(mm) | 240 | |||||
| No.of Groove | 6 | |||||
| Gear | Forward | Reverse | ||||
| Slow鈪?/span> | Slow鈪?/span> | Fast鈪?/span> | Fast鈪?/span> | Slow | Fast | |
| Pull Force(KN) | 50 | 30 | 13 | 10 | No lifting | No lifting |
| Speed(m/min) | 6 | 10 | 23 | 30 | 5 | 17 |
| Weight(kg) | 280/300 | |||||
| Dimension(mm) | 1330*800*600 | |||||
