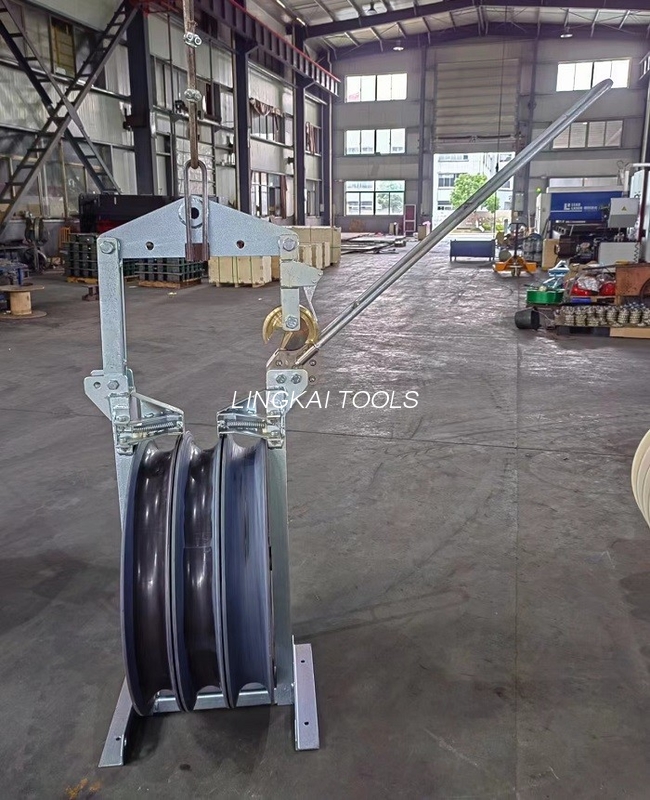

Helicopter Transmission Stringing Blocks With 5 Sheave Number Durable

Product Description:

The pulleys are designed to facilitate the stringing of the pilot rope by an helicopter. The central wheel guarantees the precise positioning of the rope, which is backed up by special guides. Additionally, the wheels of these pulleys are made of aluminium alloy and are mounted on ball bearings.

The lateral wheels have grooves lined with neoprene rings, whereas the central wheel's grooves are made of wear-proof interchangeable nylatron sectors. The frame is made of galvanized steel and the pulleys are supplied with a fixed connection. Grounding device or complete conductive sheaves can also be provided upon request.

Features:

• Product Name: Helicopter Stringing Blocks
• Capacity: 50kN-200kN
• Sheave Diameter: 508,660,822
• Weight: 61-320kgs
• Material: MC Nylon/Aluminum Alloy
• Keywords: Overhead Conductor blocks, Transmission Line Blocks, Transmission Connector Blocks

Technical Parameters:

Five sheaves Helicopter Stringing Blocks

Application: It is suitable to string FOUR or FIVE stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in aluminum alloy or high strength nylon. The big size 508mm, 660mm aluminum alloy sheave can be lined with neoprene. The big size 660mm, 822mm, 916mm, 1040mm nylon sheave can be lined with neoprene.
The central sheave is specially strengthened for passage of pilot wire rope.

Three sheaves Helicopter Stringing Blocks

Applications:

It is suitable to string TWO, THREE, FOUR or FIVE stranded aluminum and ACSR conductors along tangent structures. Through the grooves, we can pass compression sleeves, swivel connectors and pulling rope connectors.

Customization:

• Brand Name: Lingkai
• Model Number: SHD, SHDNZ, SHSQNZ, SHWQNZ, SHSLNZ, SHWLNZ
• Place of Origin: NINGBO
• Certification: ISO CE
• Minimum Order Quantity: 50
• Price: Get the latest
• Packaging Details: Containers
• Delivery Time: 5-20days
• Payment Terms: T/T L/C
• Supply Ability: 1000 sets one month
• Warranty: 1 Year
• Sheave Diameter: 508, 660, 822
• Weight: 61-320kgs
• Product Name: Helicopter Stringing Blocks
• Material: MC Nylon/Aluminum Alloy

We specialize in customized Overhead Conductor blocks, Transmission Connector Blocks, Stringing pulley blocks, Helicopter Stringing Blocks. All of our products are certified with ISO CE and guaranteed with 1 year warranty.

Packing and Shipping:

Packaging and Shipping for Transmission Stringing Blocks:

Each Transmission Stringing Block is packaged in a cardboard box with a foam insert to ensure protection during shipping. Packaging and shipping costs are calculated according to the weight and size of the package, the destination, and the shipping method chosen.
