Crimping Press:
|
14-76mm
|
Crimping Force:
|
100T
|
||||
|
Model:
|
YJD1000
|
Item:
|
16103A
|
Crimping Type:
|
Hex
|
Hydraulic Pump:
|
80Mpa
|

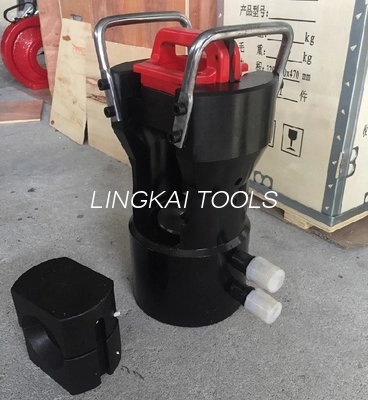

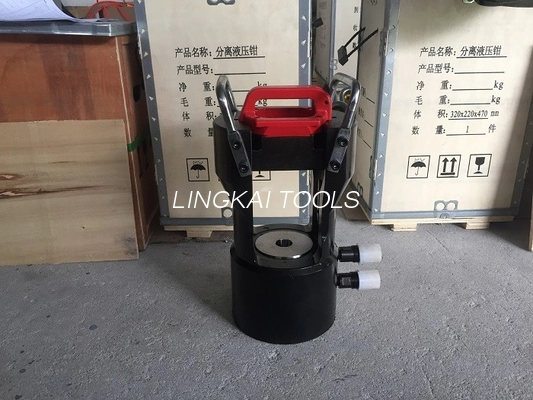

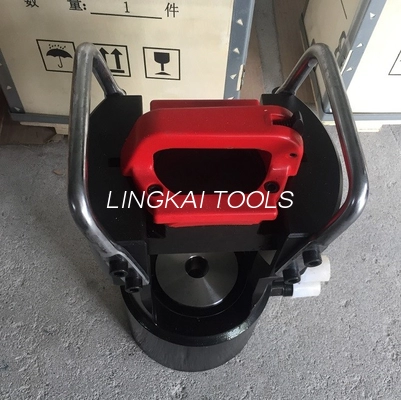

100 Ton Hydraulic Cable Crimping Tool Hydraulic Press Machine with 80Mpa Hydraulic Pump
Characteristic
1.Compression mould can be replaced, quick and safe operation;
2.A separate structure, light weight, convenient operation;
3.Used for crimp of a variety of copper, aluminum wire connection, terminal and cable;
Split-type Hydraulic Crimping Pliers Production:
|
Item number |
16103 | 16103A | 16104 | 16105 | 16106 |
|
Model |
YJD-600 | YJD-1000 | YJD-1250 | YJD-2000 | YJD-3000 |
|
Crimping force |
60T | 100T | 125T | 200T | 300T |
|
Crimping range |
14-55mm | 14-76mm | 14-76mm | 14-90mm | 14-100mm |
|
Crimping type |
hexagon crimping |
hexagon crimping |
|||
|
Stroke |
24mm | 24mm | 35mm | 35mm | |
|
Heigth |
approx.370mm | approx.480mm | |||
|
(KG) Weight |
approx.N.W20KG G.W30KG |
approx.N.W30KG G.W40KG |
approx.N.W50KG G.W60KG |
approx.N.W85KG G.W95KG |
approx.N.W120KG G.W130KG |
|
Package |
wooden case | wooden case | |||
100 Ton Hydraulic Cable Crimping Tool Hydraulic Press Machine with 80Mpa Hydraulic Pump
Configuration:Working with an electric hydraulic pump or a petrol power hydraulic pump ( 80 MPa ).
Quick Information:
1. Donghuan brand
2. Hydraulic crimping tools, 60ton, 100tons, 125tons 200tons 300tons
3. Die can accoridngly make per demands
