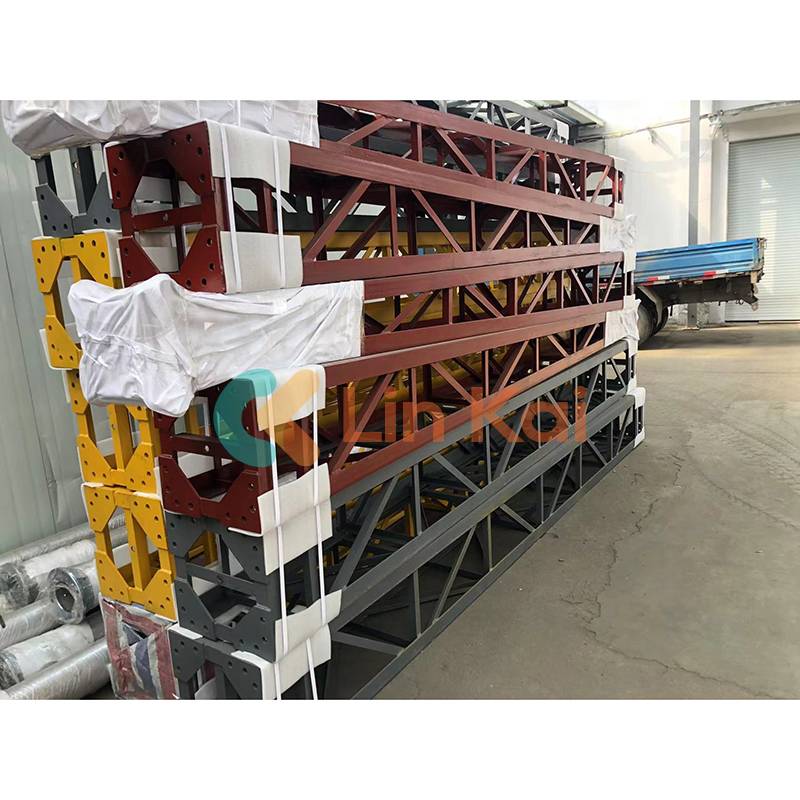

Ningbo Lingkai Manufacture’s Inner Suspended Lattice Gin Pole in stock it is made of high strength 2A12 raw aluminum alloy material, in the power line transmission construction site, it plays a important role. We have the manganese steel material Inner Suspended Lattice Gin Pole too in plant.
We have designed and produced different kinds of gin poles for lifting and erection power line concrete poles and steel towers. We also manufacture alloy steel gin poles for super high voltage transmission line tower erection, such as 800KV - 1000KV transmission line.

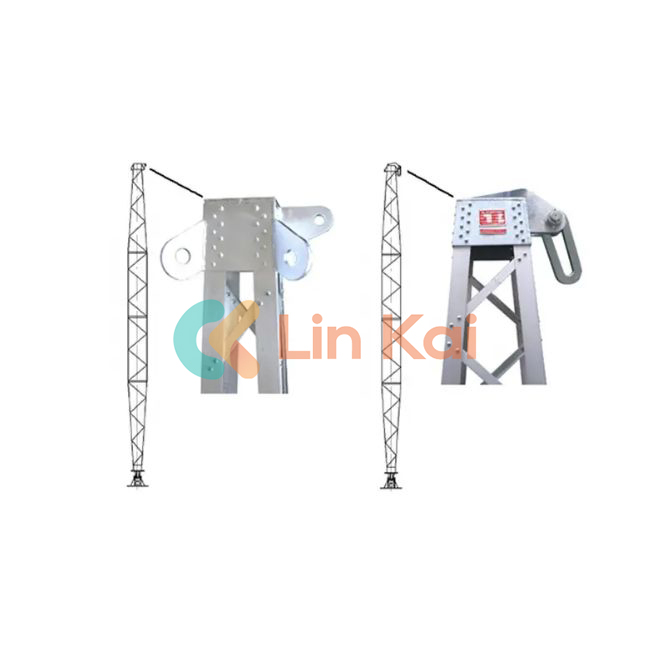

Tower erection Inner Suspended Lattice gin pole is the power line construction equipment.

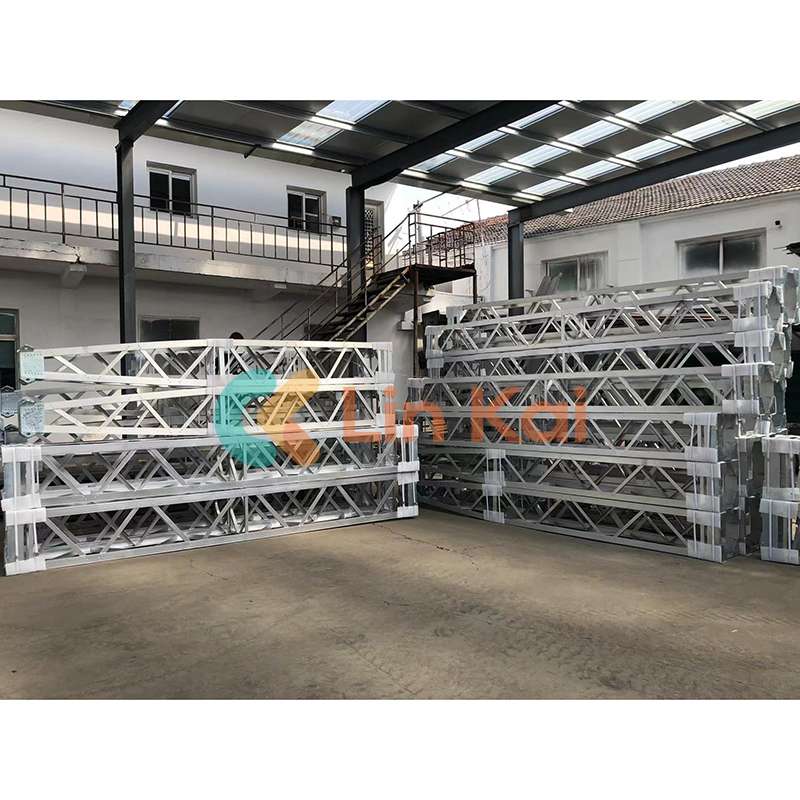

Aluminum alloy derricks gin poles are used for erection of tower in overhead transmission line construction. The gin poles are made in high strength aluminum alloy and could be assembled piece by piece.
The accessories of the gin pole, double pulleys, nuts, screws, 2 sets of waist loop, bottom base and head, can all freely supplied. The safety factor is 3.0 .
|
Item No. |
Overall Length (m) |
Side Length of Cross Section (mm) |
Allowed Axial Load (KN) |
Weight (kg/m) |
|
03121 |
10 |
250 |
23 |
10.5 |
|
03123 |
12 |
16 |
||
|
03124 |
13 |
13 |
||
|
03125 |
14 |
11 |
||
|
03126 |
15 |
10 |
||
|
03131 |
11 |
300 |
29 |
11 |
|
03132 |
12 |
24 |
||
|
03134 |
14 |
18 |
||
|
03136 |
16 |
13 |
||
|
03138 |
18 |
11 |
||
|
03142 |
12 |
350 |
33 |
13.5 |
|
03144 |
14 |
24 |
||
|
03146 |
16 |
19 |
||
|
03148 |
18 |
15 |
||
|
03151 |
12 |
400 |
43 |
14.6 |
|
03153 |
14 |
32 |
||
|
03155 |
16 |
25 |
||
|
03157 |
18 |
19 |
||
|
03159 |
20 |
14 |
||
|
03511 |
14 |
500A |
75 |
18 |
|
03513 |
16 |
64 |
||
|
03515 |
18 |
50 |
||
|
03517 |
20 |
41 |
||
|
03521 |
17 |
500B |
88 |
22 |
|
03523 |
19 |
70 |
||
|
03525 |
21 |
60 |
||
|
03527 |
23 |
52 |
||
|
03529 |
25 |
42 |
||
|
03531 |
17 |
600A |
75 |
20 |
|
03533 |
19 |
65 |
||
|
03535 |
21 |
55 |
||
|
03537 |
23 |
49 |
||
|
03539 |
25 |
41 |
||
|
03541 |
17 |
600B |
119 |
24 |
|
03543 |
19 |
104 |
||
|
03545 |
21 |
85 |
||
|
03547 |
23 |
70 |
||
|
03549 |
25 |
58 |
